Element diggs_geo:DirectShearTestIncrement
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properties of a single trial within a direct shear test procedure.

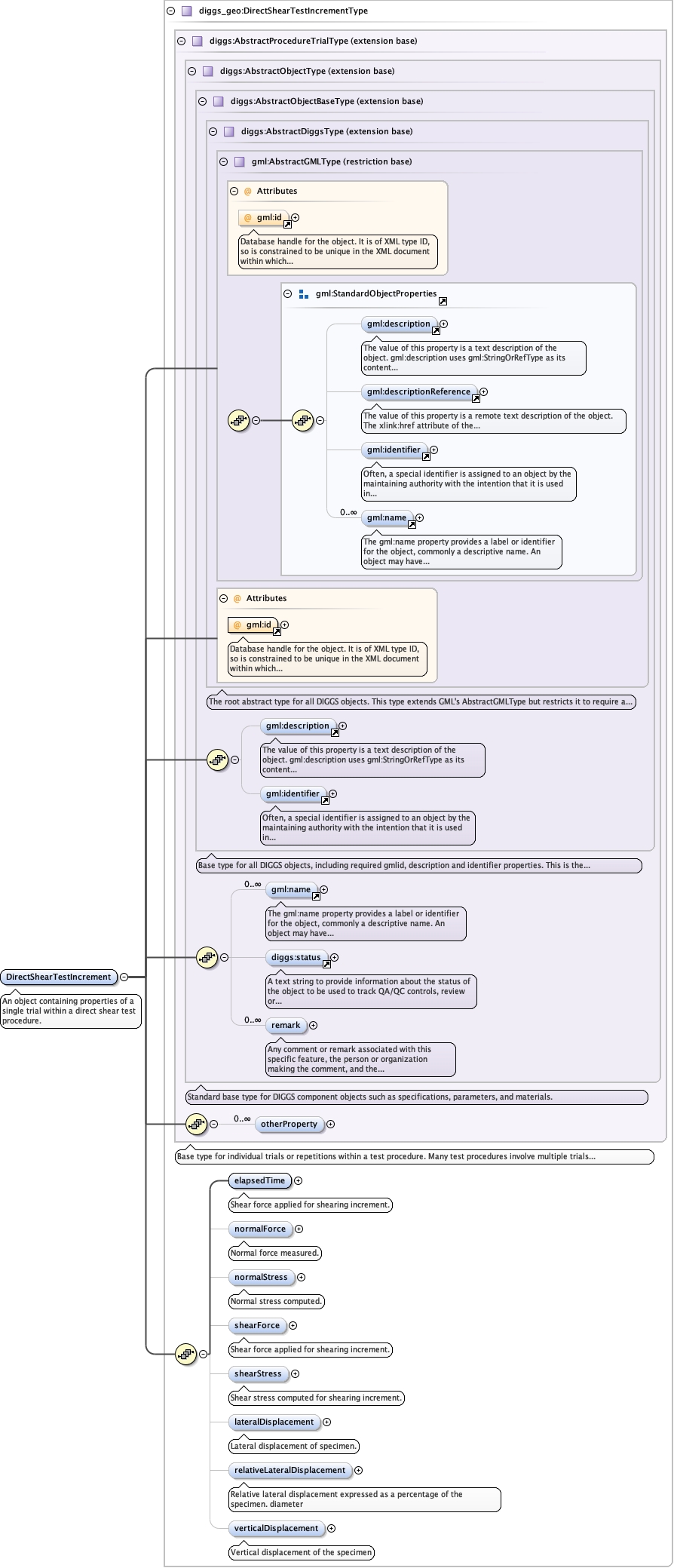

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_elapsedTimeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_normalForceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_normalStressDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_shearForceDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_shearStressDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_lateralDisplacementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_relativeLateralDisplacementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType_verticalDisplacementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DirectShearTestIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DirectShearTestIncrementType
Type diggs_geo:DirectShearTestIncrementType
Type hierarchy
Properties
content complex
abstract false
Used by
Complex Type diggs_geo:DirectShearTestIncrementPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs_geo:elapsedTime , diggs_geo:normalForce{0,1} , diggs_geo:normalStress{0,1} , diggs_geo:shearForce{0,1} , diggs_geo:shearStress{0,1} , diggs_geo:lateralDisplacement{0,1} , diggs_geo:relativeLateralDisplacement{0,1} , diggs_geo:verticalDisplacement{0,1}
Children diggs:otherProperty, diggs:remark, diggs:status, diggs_geo:elapsedTime, diggs_geo:lateralDisplacement, diggs_geo:normalForce, diggs_geo:normalStress, diggs_geo:relativeLateralDisplacement, diggs_geo:shearForce, diggs_geo:shearStress, diggs_geo:verticalDisplacement, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:DirectShearTestIncrement gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs_geo:elapsedTime howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:elapsedTime>
  <diggs_geo:normalForce howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:normalForce>
  <diggs_geo:normalStress howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:normalStress>
  <diggs_geo:shearForce howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:shearForce>
  <diggs_geo:shearStress howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:shearStress>
  <diggs_geo:lateralDisplacement howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:lateralDisplacement>
  <diggs_geo:relativeLateralDisplacement howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:relativeLateralDisplacement>
  <diggs_geo:verticalDisplacement howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:verticalDisplacement>
</diggs_geo:DirectShearTestIncrement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="DirectShearTestIncrement" type="diggs_geo:DirectShearTestIncrementType">
  <annotation>
    <documentation>An object containing properties of a single trial within a direct shear test procedure.</documentation>
  </annotation>
</element>
