Element diggs_geo:ConsolidationTestTrial
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properties of a trial within an consolidation test procedure.

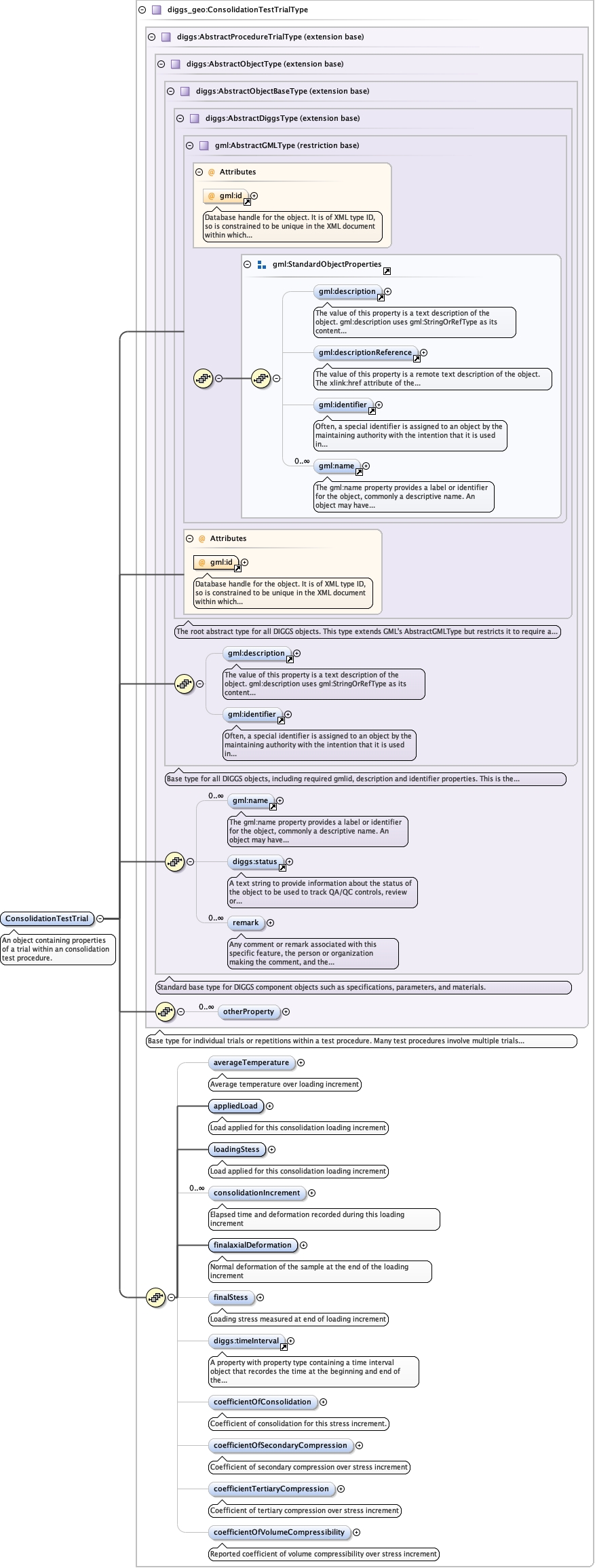

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_averageTemperatureDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_appliedLoadDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_loadingStessDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_consolidationIncrementDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_finalaxialDeformationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_finalStessCoreProcedures_xsd_Element_diggs_timeInterval.tmp#http___diggsml.org_schemas_3_timeIntervalDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_coefficientOfConsolidationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_coefficientOfSecondaryCompressionDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_coefficientTertiaryCompressionDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType_coefficientOfVolumeCompressibilityDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_ConsolidationTestTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_ConsolidationTestTrialType
Type diggs_geo:ConsolidationTestTrialType
Type hierarchy
Properties
content complex
abstract false
Used by
Complex Type diggs_geo:ConsolidationTestTrialPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs_geo:averageTemperature{0,1} , diggs_geo:appliedLoad , diggs_geo:loadingStess , diggs_geo:consolidationIncrement* , diggs_geo:finalaxialDeformation , diggs_geo:finalStess{0,1} , diggs:timeInterval{0,1} , diggs_geo:coefficientOfConsolidation{0,1} , diggs_geo:coefficientOfSecondaryCompression{0,1} , diggs_geo:coefficientTertiaryCompression{0,1} , diggs_geo:coefficientOfVolumeCompressibility{0,1}
Children diggs:otherProperty, diggs:remark, diggs:status, diggs:timeInterval, diggs_geo:appliedLoad, diggs_geo:averageTemperature, diggs_geo:coefficientOfConsolidation, diggs_geo:coefficientOfSecondaryCompression, diggs_geo:coefficientOfVolumeCompressibility, diggs_geo:coefficientTertiaryCompression, diggs_geo:consolidationIncrement, diggs_geo:finalStess, diggs_geo:finalaxialDeformation, diggs_geo:loadingStess, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:ConsolidationTestTrial gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs_geo:averageTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:averageTemperature>
  <diggs_geo:appliedLoad howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:appliedLoad>
  <diggs_geo:loadingStess howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:loadingStess>
  <diggs_geo:consolidationIncrement gml:id="">{0,unbounded}</diggs_geo:consolidationIncrement>
  <diggs_geo:finalaxialDeformation howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:finalaxialDeformation>
  <diggs_geo:finalStess howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:finalStess>
  <diggs:timeInterval>{0,1}</diggs:timeInterval>
  <diggs_geo:coefficientOfConsolidation>{0,1}</diggs_geo:coefficientOfConsolidation>
  <diggs_geo:coefficientOfSecondaryCompression>{0,1}</diggs_geo:coefficientOfSecondaryCompression>
  <diggs_geo:coefficientTertiaryCompression>{0,1}</diggs_geo:coefficientTertiaryCompression>
  <diggs_geo:coefficientOfVolumeCompressibility>{0,1}</diggs_geo:coefficientOfVolumeCompressibility>
</diggs_geo:ConsolidationTestTrial>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="ConsolidationTestTrial" type="diggs_geo:ConsolidationTestTrialType">
  <annotation>
    <documentation>An object containing properties of a trial within an consolidation test procedure.</documentation>
  </annotation>
</element>
