Element diggs_geo:CasagrandeTrial
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properites for a Casagrande liquid limit trial as part of an Atterberg test procedure.

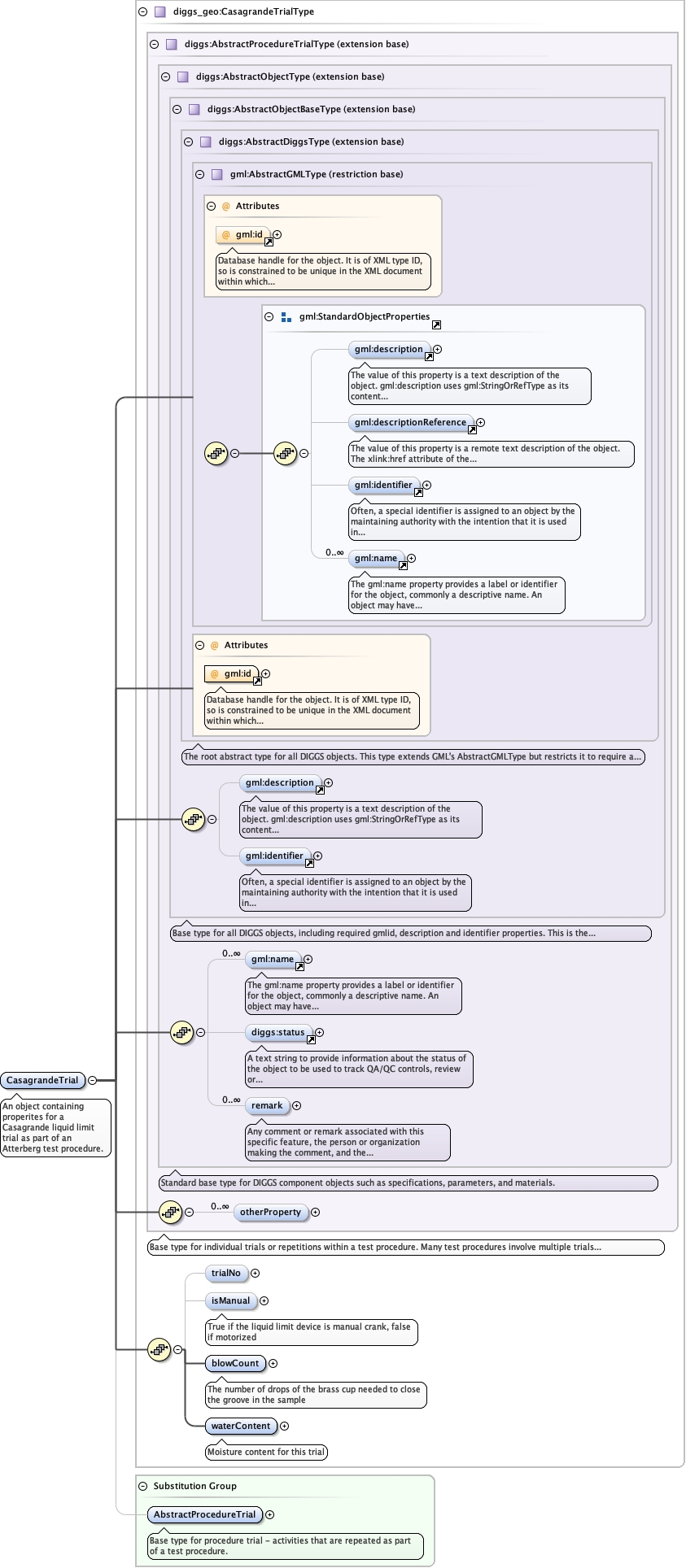

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_CasagrandeTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_CasagrandeTrialType_trialNoDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_CasagrandeTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_CasagrandeTrialType_isManualDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_CasagrandeTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_CasagrandeTrialType_blowCountDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_CasagrandeTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_CasagrandeTrialType_waterContentDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_CasagrandeTrialType.tmp#http___diggsml.org_schemas_3_geotechnical_CasagrandeTrialTypeAbstractTypes_xsd_Element_diggs_AbstractProcedureTrial.tmp#AbstractProcedureTrial
Type diggs_geo:CasagrandeTrialType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:otherProperty, diggs:remark, diggs:status, diggs_geo:blowCount, diggs_geo:isManual, diggs_geo:trialNo, diggs_geo:waterContent, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:CasagrandeTrial gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs_geo:trialNo>{0,1}</diggs_geo:trialNo>
  <diggs_geo:isManual>{0,1}</diggs_geo:isManual>
  <diggs_geo:blowCount>{1,1}</diggs_geo:blowCount>
  <diggs_geo:waterContent derivedFrom="" howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:waterContent>
</diggs_geo:CasagrandeTrial>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="CasagrandeTrial" type="diggs_geo:CasagrandeTrialType" substitutionGroup="diggs:AbstractProcedureTrial">
  <annotation>
    <documentation>An object containing properites for a Casagrande liquid limit trial as part of an Atterberg test procedure.</documentation>
  </annotation>
</element>
