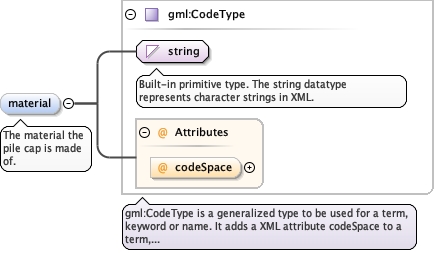

Element diggs:PileCapType / diggs:material
Namespace http://diggsml.org/schemas/3
Annotations

The material the pile cap is made of.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="material" type="gml:CodeType">
  <annotation>
    <documentation>The material the pile cap is made of.</documentation>
  </annotation>
</element>

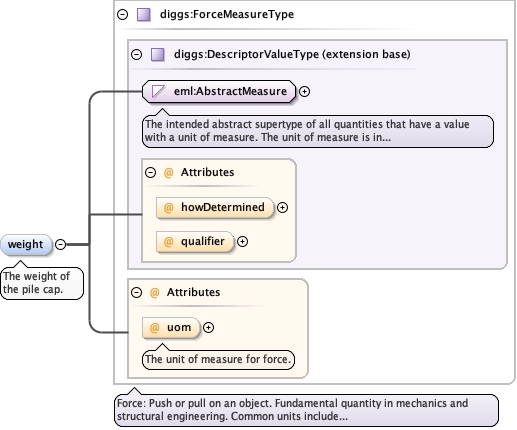

Element diggs:PileCapType / diggs:weight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the pile cap.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="weight" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The weight of the pile cap.</documentation>
  </annotation>
</element>
Element diggs:PileCapType / diggs:diameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the pile cap.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="diameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the pile cap.</documentation>
  </annotation>
</element>

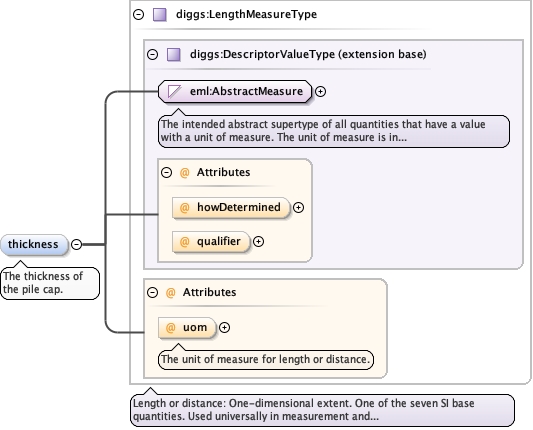

Element diggs:PileCapType / diggs:thickness
Namespace http://diggsml.org/schemas/3
Annotations

The thickness of the pile cap.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="thickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The thickness of the pile cap.</documentation>
  </annotation>
</element>
Element diggs:PileCapType / diggs:pileCushion
Namespace http://diggsml.org/schemas/3
Annotations

A property that contains a Cushion object that describes
the pile cushion. Multiple Cushon objects can be associated with the
cap to account for multiple drives that might occur for the pile
driving activity if the cushion is changed out between
drives.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_Cushion.tmp#CushionDeepFoundation_xsd_Complex_Type_diggs_CushionPropertyType.tmp#CushionPropertyType
Type diggs:CushionPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cushion
Instance

<diggs:pileCushion xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Cushion gml:id="">{1,1}</diggs:Cushion>
</diggs:pileCushion>
Source

<element minOccurs="0" name="pileCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A property that contains a Cushion object that describes the pile cushion. Multiple Cushon objects can be associated with the cap to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
  </annotation>
</element>

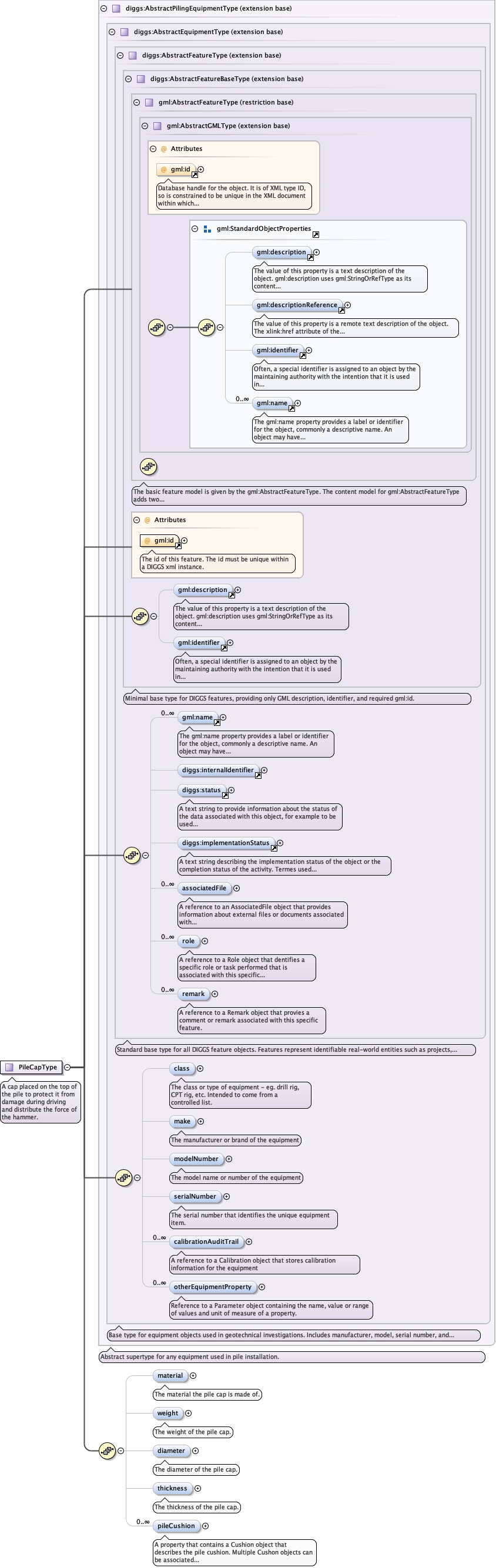

Complex Type diggs:PileCapType
Namespace http://diggsml.org/schemas/3
Annotations

A cap placed on the top of the pile to protect it from damage during
driving and distribute the force of the hammer.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_AbstractPilingEquipmentType.tmp#AbstractPilingEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_PileCapType.tmp#PileCapType_materialDeepFoundation_xsd_Complex_Type_diggs_PileCapType.tmp#PileCapType_weightDeepFoundation_xsd_Complex_Type_diggs_PileCapType.tmp#PileCapType_diameterDeepFoundation_xsd_Complex_Type_diggs_PileCapType.tmp#PileCapType_thicknessDeepFoundation_xsd_Complex_Type_diggs_PileCapType.tmp#PileCapType_pileCushion
Type extension of diggs:AbstractPilingEquipmentType
Type hierarchy
Properties
mixed false
Used by
Element diggs:PileCap
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:diameter, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:material, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pileCushion, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, diggs:thickness, diggs:weight, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType mixed="false" name="PileCapType">
  <annotation>
    <documentation>A cap placed on the top of the pile to protect it from damage during driving and distribute the force of the hammer.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPilingEquipmentType">
      <sequence>
        <element minOccurs="0" name="material" type="gml:CodeType">
          <annotation>
            <documentation>The material the pile cap is made of.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="weight" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The weight of the pile cap.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="diameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the pile cap.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="thickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The thickness of the pile cap.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A property that contains a Cushion object that describes the pile cushion. Multiple Cushon objects can be associated with the cap to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
