Namespace http://diggsml.org/schemas/3
Annotations
The action taken to obtain or produce material samples even if the
activity fails to produce a sample (eg. a core run that produces no recovery). The
activity type must be specified, and indicates if the produced sample(s) are a
result of collection at a sampling feature, sub-sampling, aggregation of two or more
samples, or a sample created as a test or blank sample. All samples must refer to a
SamplingActivity feature.

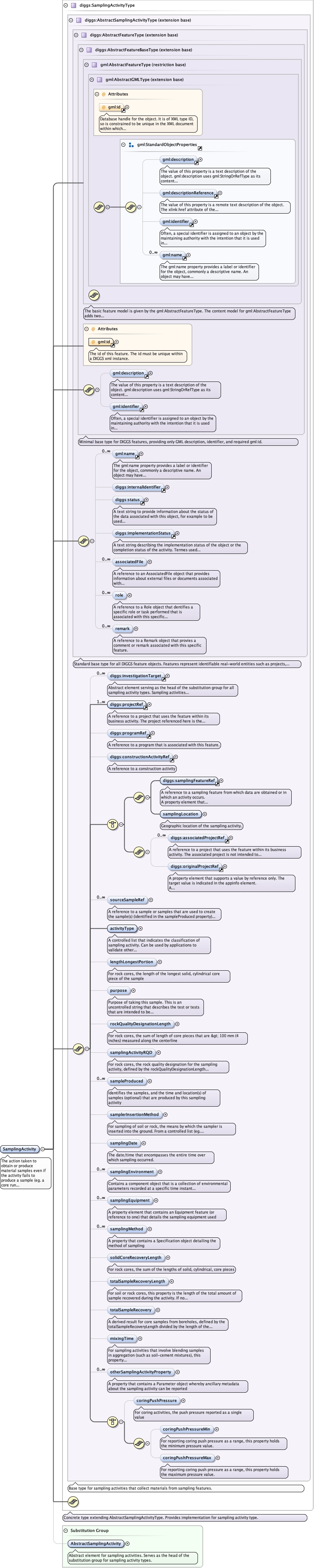

Diagram
Type diggs:SamplingActivityType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:programRef{0,1} ,
diggs:constructionActivityRef{0,1} , ((
diggs:samplingFeatureRef ,
diggs:samplingLocation ) | (
diggs:associatedProjectRef* ,
diggs:originalProjectRef{0,1} )) ,
diggs:sourceSampleRef* ,
diggs:activityType ,
diggs:lengthLongestPortion{0,1} ,
diggs:purpose{0,1} ,
diggs:rockQualityDesignationLength{0,1} ,
diggs:samplingActivityRQD{0,1} ,
diggs:sampleProduced* ,
diggs:samplerInsertionMethod{0,1} ,
diggs:samplingDate{0,1} ,
diggs:samplingEnvironment* ,
diggs:samplingEquipment* ,
diggs:samplingMethod* ,
diggs:solidCoreRecoveryLength{0,1} ,
diggs:totalSampleRecoveryLength{0,1} ,
diggs:totalSampleRecovery{0,1} ,
diggs:mixingTime{0,1} ,
diggs:otherSamplingActivityProperty* , (
diggs:coringPushPressure{0,1} | (
diggs:coringPushPressureMin{0,1} ,
diggs:coringPushPressureMax{0,1} ))
Children diggs:activityType diggs:associatedFile diggs:associatedProjectRef diggs:constructionActivityRef diggs:coringPushPressure diggs:coringPushPressureMax diggs:coringPushPressureMin diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:lengthLongestPortion diggs:mixingTime diggs:originalProjectRef diggs:otherSamplingActivityProperty diggs:programRef diggs:projectRef diggs:purpose diggs:remark diggs:rockQualityDesignationLength diggs:role diggs:sampleProduced diggs:samplerInsertionMethod diggs:samplingActivityRQD diggs:samplingDate diggs:samplingEnvironment diggs:samplingEquipment diggs:samplingFeatureRef diggs:samplingLocation diggs:samplingMethod diggs:solidCoreRecoveryLength diggs:sourceSampleRef diggs:status diggs:totalSampleRecovery diggs:totalSampleRecoveryLength gml:description gml:identifier gml:name
Instance
<diggs:SamplingActivity gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:constructionActivityRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:constructionActivityRef>
<diggs:samplingFeatureRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:samplingFeatureRef>
<diggs:samplingLocation xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:samplingLocation>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:sourceSampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:sourceSampleRef>
<diggs:activityType > {1,1} </diggs:activityType>
<diggs:lengthLongestPortion howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:lengthLongestPortion>
<diggs:purpose > {0,1} </diggs:purpose>
<diggs:rockQualityDesignationLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:rockQualityDesignationLength>
<diggs:samplingActivityRQD howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:samplingActivityRQD>
<diggs:sampleProduced > {0,unbounded} </diggs:sampleProduced>
<diggs:samplerInsertionMethod codeSpace= "" > {0,1} </diggs:samplerInsertionMethod>
<diggs:samplingDate > {0,1} </diggs:samplingDate>
<diggs:samplingEnvironment > {0,unbounded} </diggs:samplingEnvironment>
<diggs:samplingEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:samplingEquipment>
<diggs:samplingMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:samplingMethod>
<diggs:solidCoreRecoveryLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:solidCoreRecoveryLength>
<diggs:totalSampleRecoveryLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalSampleRecoveryLength>
<diggs:totalSampleRecovery howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalSampleRecovery>
<diggs:mixingTime howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:mixingTime>
<diggs:otherSamplingActivityProperty > {0,unbounded} </diggs:otherSamplingActivityProperty>
<diggs:coringPushPressure howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:coringPushPressure>
<diggs:coringPushPressureMin howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:coringPushPressureMin>
<diggs:coringPushPressureMax howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:coringPushPressureMax>
</diggs:SamplingActivity>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "SamplingActivity" substitutionGroup= "diggs:AbstractSamplingActivity" type= "diggs:SamplingActivityType" >
<annotation >
<documentation > The action taken to obtain or produce material samples even if the activity fails to produce a sample (eg. a core run that produces no recovery). The activity type must be specified, and indicates if the produced sample(s) are a result of collection at a sampling feature, sub-sampling, aggregation of two or more samples, or a sample created as a test or blank sample. All samples must refer to a SamplingActivity feature. </documentation>
</annotation>
</element>
