Schema documentation for component diggs:LabVaneTest

An object describing the properties of a laboratory vane test procedure. The laboratory vane shear test consists of inserting a four-bladed vane in the end of an intact tube sample or remolded sample and rotating it at a constant rate to determine the torque required to cause a cylindrical surface to be sheared by the vane. This torque is then converted to a unit shearing resistance of the cylindrical surface area. The torque is mea- sured by a calibrated torque spring or torque transducer that is attached directly to the vane.

<diggs:LabVaneTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:specimen>
  <diggs:intactVaneTest>{0,1}</diggs:intactVaneTest>
  <diggs:remoldedVaneTest>{0,unbounded}</diggs:remoldedVaneTest>
  <diggs:torqueMeasuringDevice codeSpace="">{0,1}</diggs:torqueMeasuringDevice>
  <diggs:vaneDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:vaneDiameter>
  <diggs:vaneHeight howDetermined="" qualifier="" uom="">{0,1}</diggs:vaneHeight>
  <diggs:vaneLength howDetermined="" qualifier="" uom="">{0,1}</diggs:vaneLength>
</diggs:LabVaneTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

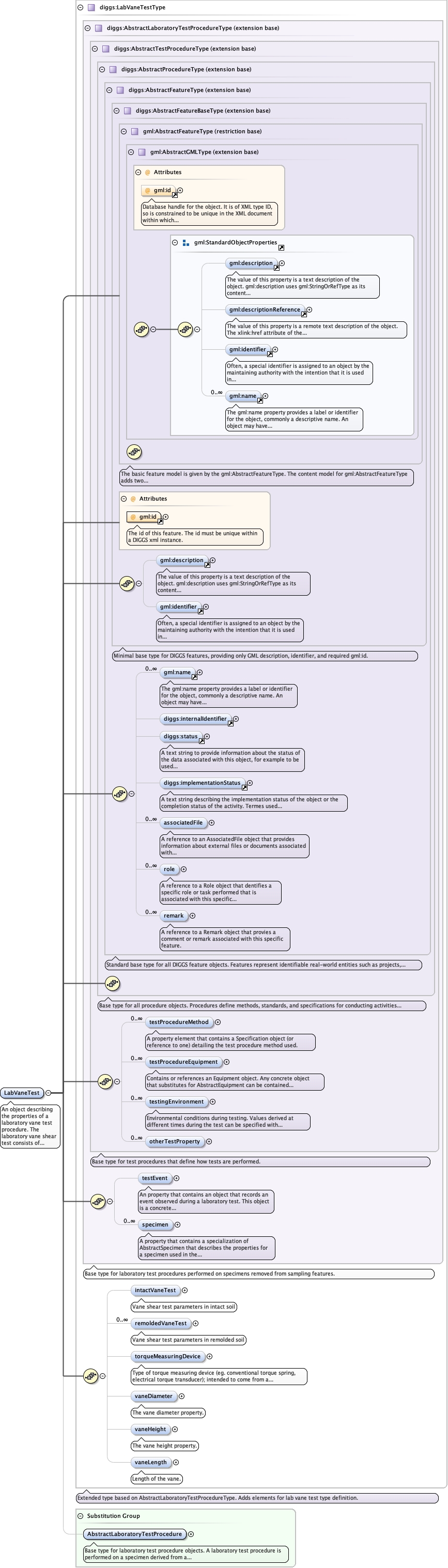

<element abstract="false" name="LabVaneTest" substitutionGroup="diggs:AbstractLaboratoryTestProcedure" type="diggs:LabVaneTestType"> <annotation> <documentation>An object describing the properties of a laboratory vane test procedure. The laboratory vane shear test consists of inserting a four-bladed vane in the end of an intact tube sample or remolded sample and rotating it at a constant rate to determine the torque required to cause a cylindrical surface to be sheared by the vane. This torque is then converted to a unit shearing resistance of the cylindrical surface area. The torque is mea- sured by a calibrated torque spring or torque transducer that is attached directly to the vane.</documentation> </annotation> </element>
