Schema documentation for component diggs:ConsolidationIncrement

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ConsolidationIncrement

Namespace

http://diggsml.org/schemas/3

Annotations

An object containing properties of a single consolidation increment
within the consolidation stage of a triaxial test procedure.

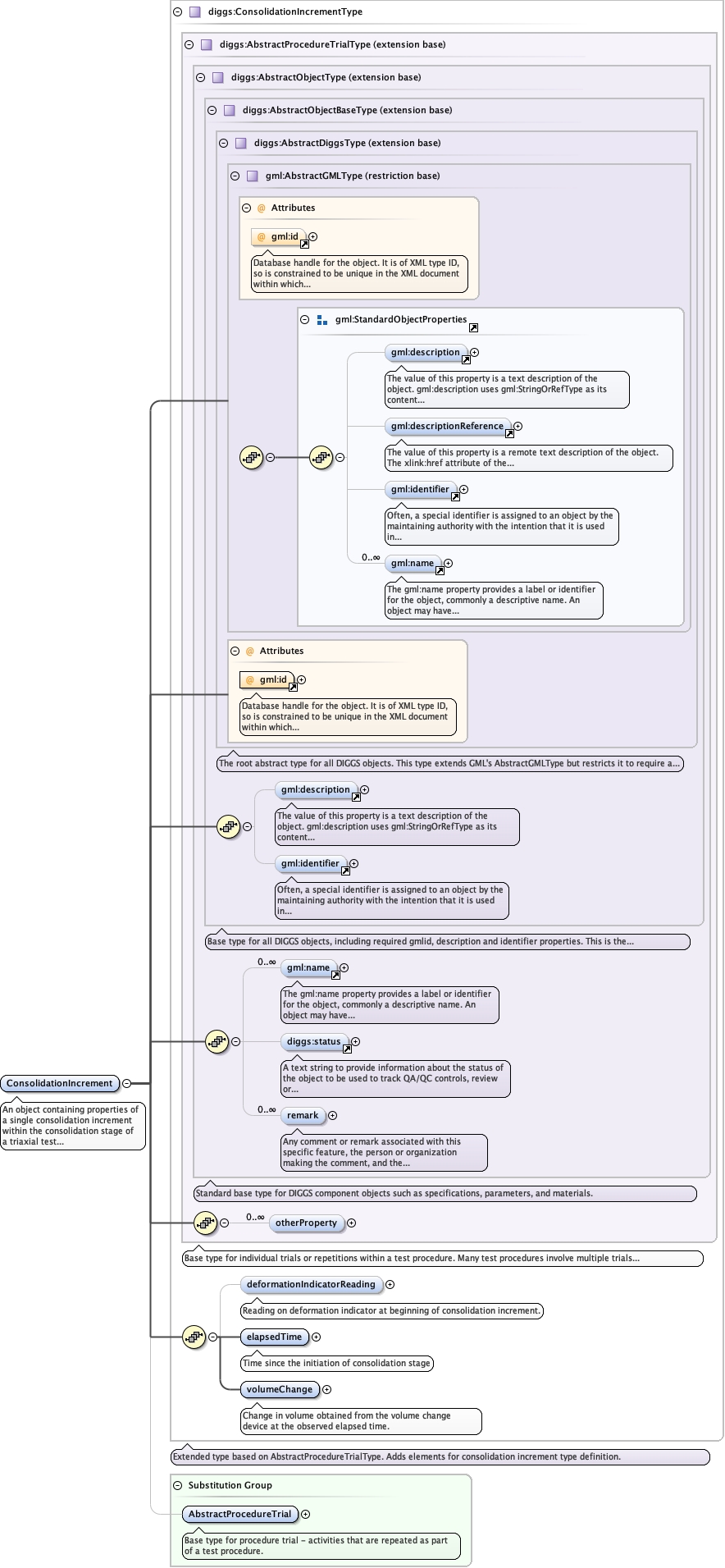

Diagram

Type

diggs:ConsolidationIncrementType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectBaseType
    - diggs:AbstractObjectType
      - diggs:AbstractProcedureTrialType

        diggs:ConsolidationIncrementType

Properties

content	complex
abstract	false

Substitution Group Affiliation

diggs:AbstractProcedureTrial

Used by

Complex Type

diggs:ConsolidationIncrementPropertyType

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs:deformationIndicatorReading{0,1} , diggs:elapsedTime , diggs:volumeChange

Children

diggs:deformationIndicatorReading, diggs:elapsedTime, diggs:otherProperty, diggs:remark, diggs:status, diggs:volumeChange, gml:description, gml:identifier, gml:name

Instance

<diggs:ConsolidationIncrement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs:deformationIndicatorReading howDetermined="" qualifier="" uom="">{0,1}</diggs:deformationIndicatorReading>
  <diggs:elapsedTime howDetermined="" qualifier="" uom="">{1,1}</diggs:elapsedTime>
  <diggs:volumeChange howDetermined="" qualifier="" uom="">{1,1}</diggs:volumeChange>
</diggs:ConsolidationIncrement>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element abstract="false" name="ConsolidationIncrement" substitutionGroup="diggs:AbstractProcedureTrial" type="diggs:ConsolidationIncrementType">
  <annotation>
    <documentation>An object containing properties of a single consolidation increment within the consolidation stage of a triaxial test procedure.</documentation>
  </annotation>
</element>
