Showing:

Annotations
Attributes
Diagrams
Instances
Model
Properties
Source
Used by
Element diggs:SpecificationType / diggs:accredtingBody
Namespace http://diggsml.org/schemas/3
Annotations

Identification of the accrediting body and reference
number, if applicable.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="accredtingBody" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Identification of the accrediting body and reference number, if applicable.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:shortMethodName
Namespace http://diggsml.org/schemas/3
Annotations

Name of the short method.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="shortMethodName" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name of the short method.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardClause
Namespace http://diggsml.org/schemas/3
Annotations

The standard clause property.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardClause" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The standard clause property.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardPart
Namespace http://diggsml.org/schemas/3
Annotations

The standard part property.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardPart" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The standard part property.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardReferenceNumber
Namespace http://diggsml.org/schemas/3
Annotations

Number or numerical identifier for the standard
reference.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardReferenceNumber" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Number or numerical identifier for the standard reference.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardTitle
Namespace http://diggsml.org/schemas/3
Annotations

The standard title property.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardTitle" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The standard title property.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:standardVersion
Namespace http://diggsml.org/schemas/3
Annotations

The standard version property.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="standardVersion" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The standard version property.</documentation>
  </annotation>
</element>
Element diggs:SpecificationType / diggs:otherSpecificationProperty
Namespace http://diggsml.org/schemas/3
Annotations

The other specification property
property.

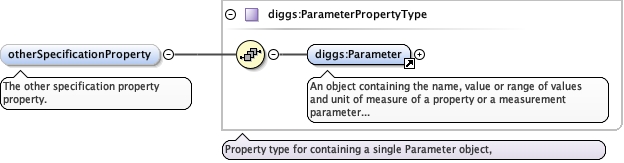

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherSpecificationProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherSpecificationProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherSpecificationProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>The other specification property property.</documentation>
  </annotation>
</element>
Complex Type diggs:SpecificationType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractProcedureType. Adds elements for
specification type definition.

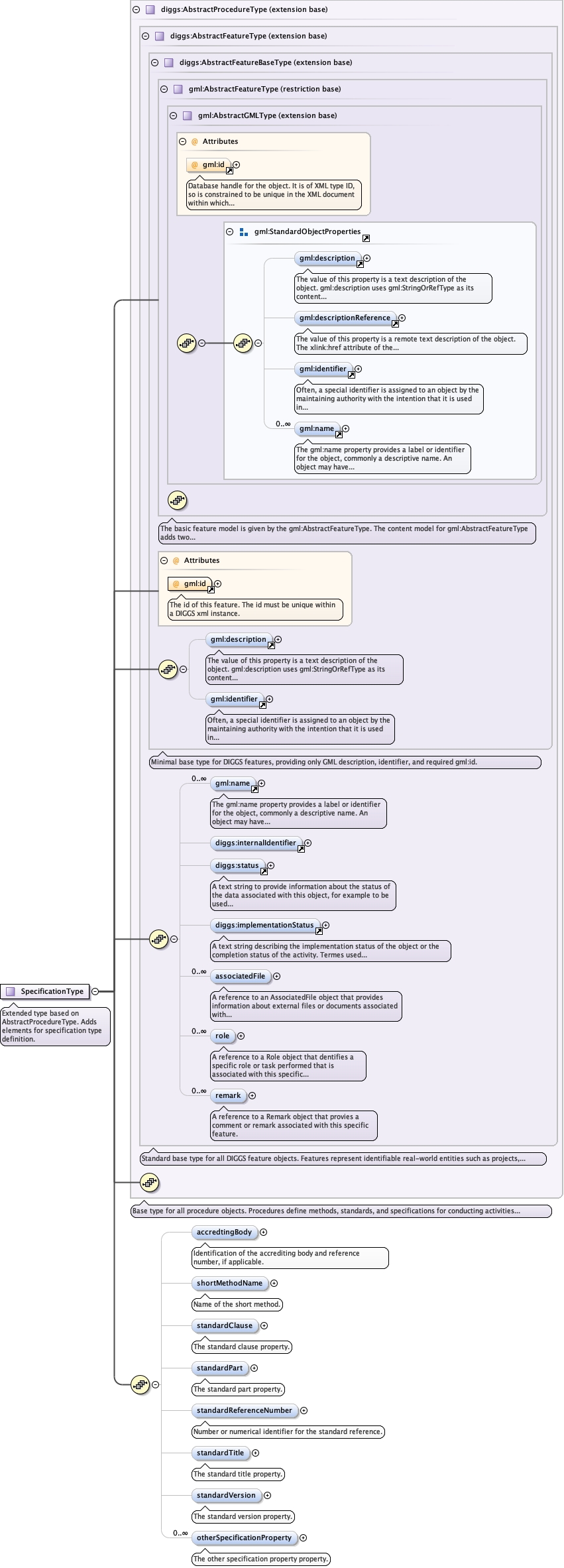

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_accredtingBodyCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_shortMethodNameCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardClauseCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardPartCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardReferenceNumberCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardTitleCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_standardVersionCommon_xsd_Complex_Type_diggs_SpecificationType.tmp#SpecificationType_otherSpecificationProperty
Type extension of diggs:AbstractProcedureType
Type hierarchy
Used by
Model
Children diggs:accredtingBody, diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecificationProperty, diggs:remark, diggs:role, diggs:shortMethodName, diggs:standardClause, diggs:standardPart, diggs:standardReferenceNumber, diggs:standardTitle, diggs:standardVersion, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SpecificationType">
  <annotation>
    <documentation>Extended type based on AbstractProcedureType. Adds elements for specification type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProcedureType">
      <sequence>
        <element name="accredtingBody" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Identification of the accrediting body and reference number, if applicable.</documentation>
          </annotation>
        </element>
        <element name="shortMethodName" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name of the short method.</documentation>
          </annotation>
        </element>
        <element name="standardClause" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The standard clause property.</documentation>
          </annotation>
        </element>
        <element name="standardPart" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The standard part property.</documentation>
          </annotation>
        </element>
        <element name="standardReferenceNumber" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Number or numerical identifier for the standard reference.</documentation>
          </annotation>
        </element>
        <element name="standardTitle" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The standard title property.</documentation>
          </annotation>
        </element>
        <element name="standardVersion" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The standard version property.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherSpecificationProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>The other specification property property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
