Schema documentation for component diggs:ResultsPropertyType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type diggs:ResultsPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type for containing either a ResultSet or ResultFile object.

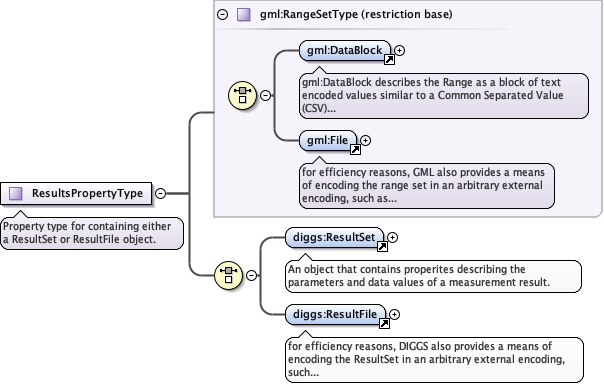

Diagram

Type

restriction of gml:RangeSetType

Type hierarchy

gml:RangeSetType
- diggs:ResultsPropertyType

Used by

Elements

diggs:pdaRecordResults, diggs:pileDrivingRecordResults, diggs:results

Model

diggs:ResultSet | diggs:ResultFile

Children

diggs:ResultFile, diggs:ResultSet

Source

<complexType name="ResultsPropertyType">
  <annotation>
    <documentation>Property type for containing either a ResultSet or ResultFile object.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:RangeSetType">
      <choice minOccurs="1">
        <element ref="diggs:ResultSet" minOccurs="1"/>
        <element ref="diggs:ResultFile"/>
      </choice>
    </restriction>
  </complexContent>
</complexType>
