Element diggs:AbstractEventType / diggs:time
Namespace http://diggsml.org/schemas/3
Annotations

Date/time when this event information was
recorded
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:time xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:time>
Source

<element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
  <annotation>
    <documentation>Date/time when this event information was recorded</documentation>
  </annotation>
</element>
Element diggs:AbstractEventType / diggs:infoRecorded
Namespace http://diggsml.org/schemas/3
Annotations

Other associated data measured or observed at this
time
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:infoRecorded xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:infoRecorded>
Source

<element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>Other associated data measured or observed at this time</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractEventType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for event objects that record time-based or location-based occurrences during investigations.

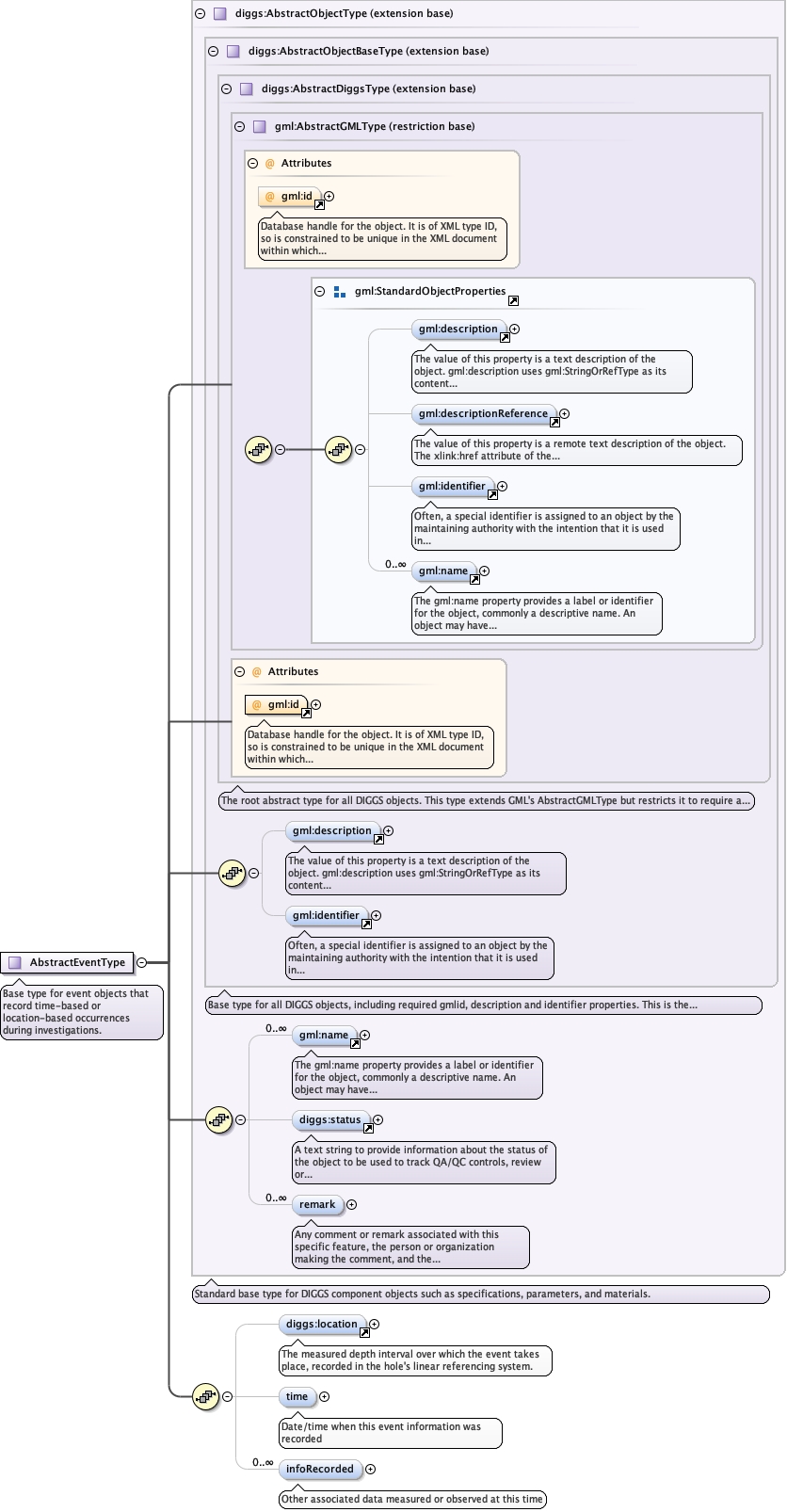

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecorded
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:infoRecorded, diggs:location, diggs:remark, diggs:status, diggs:time, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractEventType" abstract="true">
  <annotation>
    <documentation>Base type for event objects that record time-based or location-based occurrences during investigations.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:location">
          <annotation>
            <documentation>The measured depth interval over which the event takes place, recorded in the hole's linear referencing system.</documentation>
          </annotation>
        </element>
        <element name="time" type="diggs:TimeIntervalPropertyType" minOccurs="0">
          <annotation>
            <documentation>Date/time when this event information was recorded</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="infoRecorded" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>Other associated data measured or observed at this time</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
