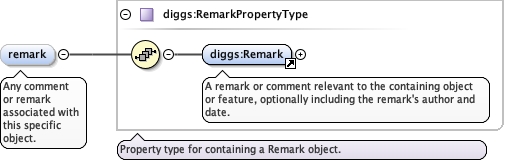

Schema documentation for component diggs:remark

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType"> <annotation> <documentation>Any comment or remark associated with this specific object.</documentation> </annotation> </element>

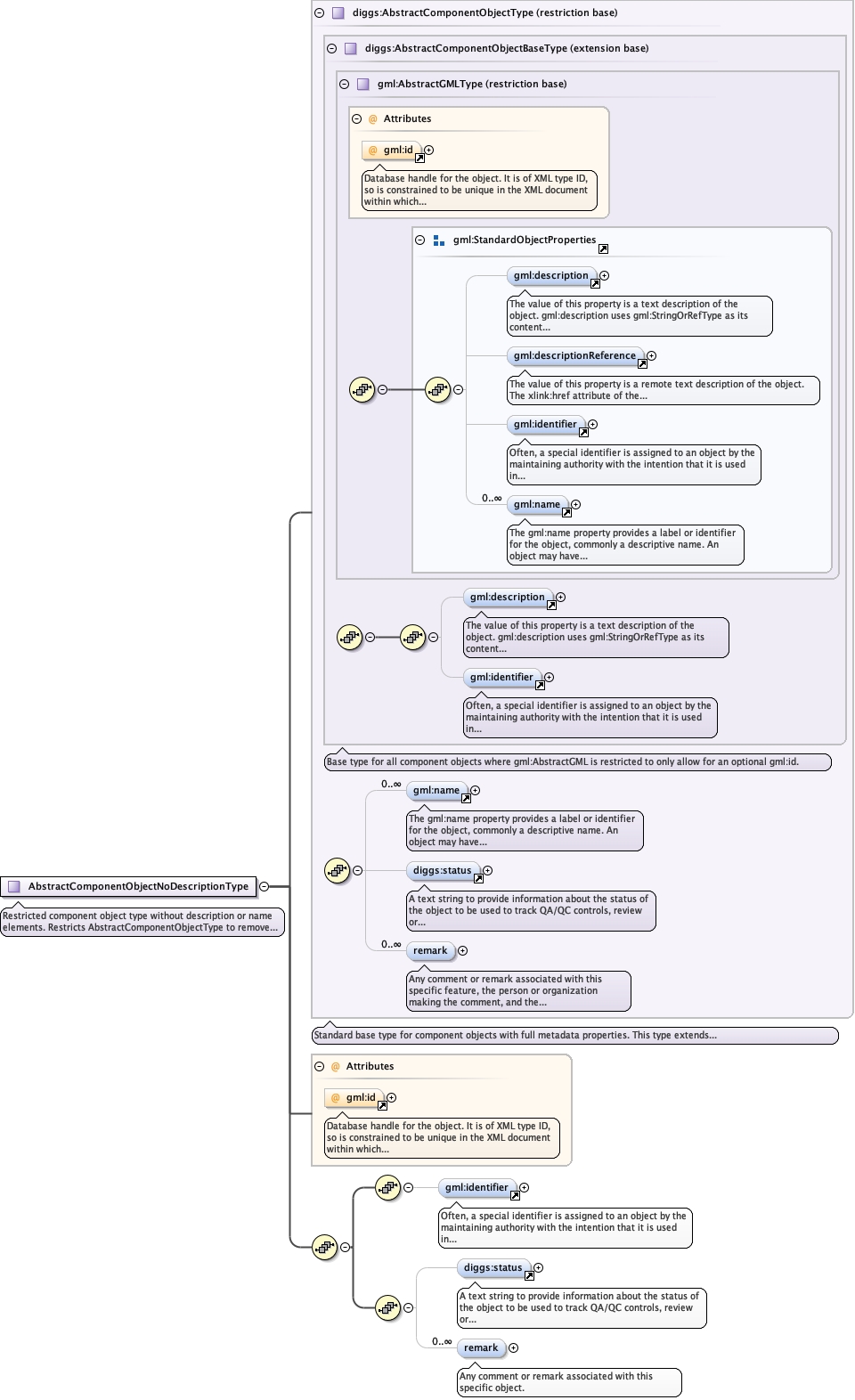

Restricted component object type without description or name elements. Restricts AbstractComponentObjectType to remove the description and name elements, retaining only identifier, status, and remark properties.

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<complexType name="AbstractComponentObjectNoDescriptionType" abstract="true">
  <annotation>
    <documentation>Restricted component object type without description or name elements. Restricts AbstractComponentObjectType to remove the description and name elements, retaining only identifier, status, and remark properties.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractComponentObjectType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element minOccurs="0" ref="diggs:status">
            <annotation>
              <documentation>A text string to provide information about the status of the object to be used to track QA/QC controls, review or release status, etc. The values used are intended to come from a controlled list of terms maintained by an organization.</documentation>
            </annotation>
          </element>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>Any comment or remark associated with this specific object.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
      <attribute ref="gml:id" use="optional"/>
    </restriction>
  </complexContent>
</complexType>
