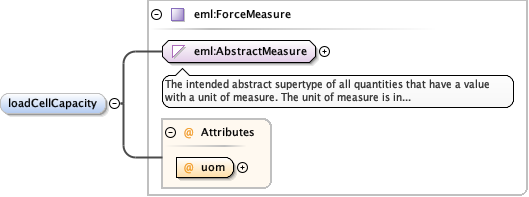

Element diggs:TriaxialTestEquipmentType / diggs:loadCellCapacity
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure_uomMeasureType_xsd_Complex_Type_eml_ForceMeasure.tmp#ForceMeasure
Type eml:ForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUom required
Source

<element minOccurs="0" name="loadCellCapacity" type="eml:ForceMeasure"/>

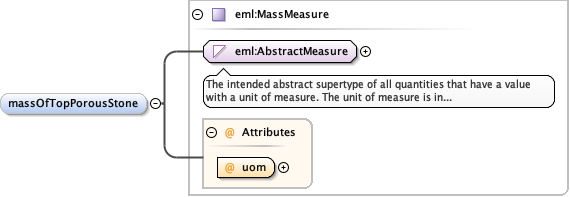

Element diggs:TriaxialTestEquipmentType / diggs:massOfTopPorousStone
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure
Type eml:MassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassUom required
Source

<element minOccurs="0" name="massOfTopPorousStone" type="eml:MassMeasure"/>
Element diggs:TriaxialTestEquipmentType / diggs:massOfTopCap
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure_uomMeasureType_xsd_Complex_Type_eml_MassMeasure.tmp#MassMeasure
Type eml:MassMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MassUom required
Source

<element minOccurs="0" name="massOfTopCap" type="eml:MassMeasure"/>

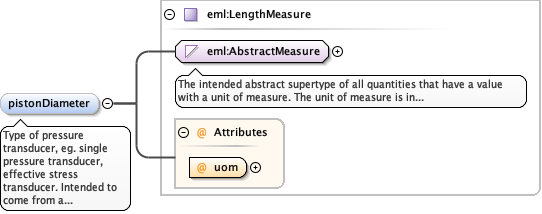

Element diggs:TriaxialTestEquipmentType / diggs:pistonDiameter
Namespace http://diggsml.org/schemas/2.6
Annotations

Type of pressure transducer, eg. single pressure
transducer, effective stress transducer. Intended to come from a
controlled list of terms.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUom required
Source

<element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
  <annotation>
    <documentation>Type of pressure transducer, eg. single pressure transducer, effective stress transducer. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:TriaxialTestEquipmentType / diggs:poreWaterPressureDeviceMeetsUndrainedSpecs
Namespace http://diggsml.org/schemas/2.6
Annotations

For undrained tests, this property is true if pore water
pressure measurement system satisfies the requirment that the volume
change due to pore water pressure change divided by total volume of
specimen divided by the change in pore pressue less than 3.2 X 10-6
m2/kN (2.2 X 10-5 in2/lb (ASTM 4761-11, Sec. 5.8)
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="poreWaterPressureDeviceMeetsUndrainedSpecs" type="boolean">
  <annotation>
    <documentation>For undrained tests, this property is true if pore water pressure measurement system satisfies the requirment that the volume change due to pore water pressure change divided by total volume of specimen divided by the change in pore pressue less than 3.2 X 10-6 m2/kN (2.2 X 10-5 in2/lb (ASTM 4761-11, Sec. 5.8)</documentation>
  </annotation>
</element>

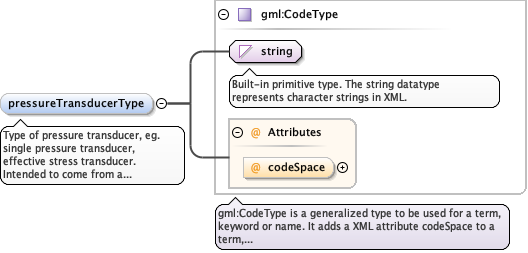

Element diggs:TriaxialTestEquipmentType / diggs:pressureTransducerType
Namespace http://diggsml.org/schemas/2.6
Annotations

Type of pressure transducer, eg. single pressure
transducer, effective stress transducer. Intended to come from a
controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pressureTransducerType" type="gml:CodeType">
  <annotation>
    <documentation>Type of pressure transducer, eg. single pressure transducer, effective stress transducer. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>

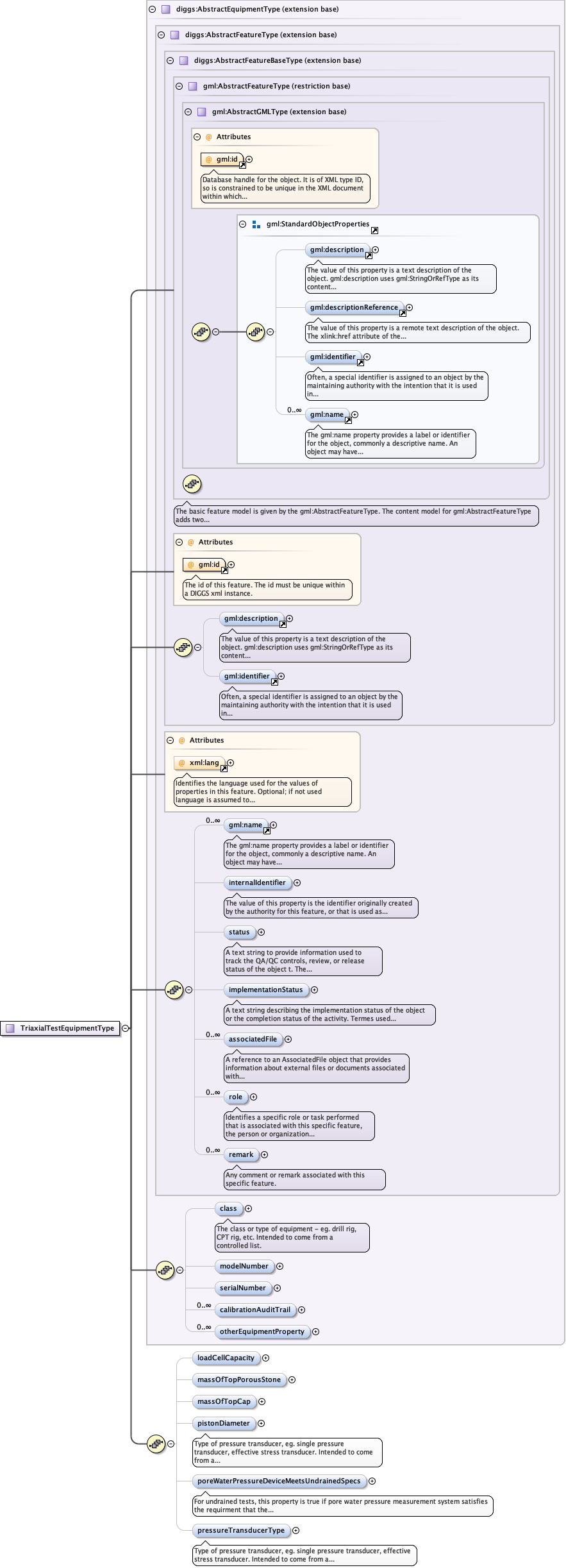

Complex Type diggs:TriaxialTestEquipmentType
Namespace http://diggsml.org/schemas/2.6
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_statusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_loadCellCapacityTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_massOfTopPorousStoneTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_massOfTopCapTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_pistonDiameterTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_poreWaterPressureDeviceMeetsUndrainedSpecsTestProceduresAll_xsd_Complex_Type_diggs_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_2.6_TriaxialTestEquipmentType_pressureTransducerType
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Element diggs:TriaxialTestEquipment
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:class{0,1} , diggs:modelNumber{0,1} , diggs:serialNumber{0,1} , diggs:calibrationAuditTrail* , diggs:otherEquipmentProperty* , diggs:loadCellCapacity{0,1} , diggs:massOfTopPorousStone{0,1} , diggs:massOfTopCap{0,1} , diggs:pistonDiameter{0,1} , diggs:poreWaterPressureDeviceMeetsUndrainedSpecs{0,1} , diggs:pressureTransducerType{0,1}
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:loadCellCapacity, diggs:massOfTopCap, diggs:massOfTopPorousStone, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pistonDiameter, diggs:poreWaterPressureDeviceMeetsUndrainedSpecs, diggs:pressureTransducerType, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="TriaxialTestEquipmentType">
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="loadCellCapacity" type="eml:ForceMeasure"/>
        <element minOccurs="0" name="massOfTopPorousStone" type="eml:MassMeasure"/>
        <element minOccurs="0" name="massOfTopCap" type="eml:MassMeasure"/>
        <element minOccurs="0" name="pistonDiameter" type="eml:LengthMeasure">
          <annotation>
            <documentation>Type of pressure transducer, eg. single pressure transducer, effective stress transducer. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="poreWaterPressureDeviceMeetsUndrainedSpecs" type="boolean">
          <annotation>
            <documentation>For undrained tests, this property is true if pore water pressure measurement system satisfies the requirment that the volume change due to pore water pressure change divided by total volume of specimen divided by the change in pore pressue less than 3.2 X 10-6 m2/kN (2.2 X 10-5 in2/lb (ASTM 4761-11, Sec. 5.8)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureTransducerType" type="gml:CodeType">
          <annotation>
            <documentation>Type of pressure transducer, eg. single pressure transducer, effective stress transducer. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
