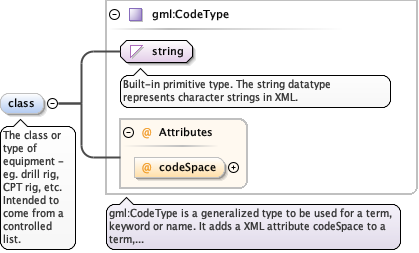

Element diggs:AbstractEquipmentType / diggs:class
Namespace http://diggsml.org/schemas/2.6
Annotations

The class or type of equipment - eg. drill rig, CPT rig,
etc. Intended to come from a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The class or type of equipment - eg. drill rig, CPT rig, etc. Intended to come from a controlled list.</documentation>
  </annotation>
</element>

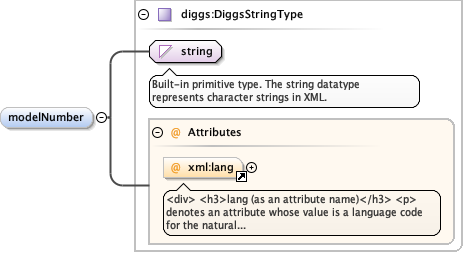

Element diggs:AbstractEquipmentType / diggs:modelNumber
Namespace http://diggsml.org/schemas/2.6
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="modelNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1"/>
Element diggs:AbstractEquipmentType / diggs:serialNumber
Namespace http://diggsml.org/schemas/2.6
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
maxOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element name="serialNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1"/>

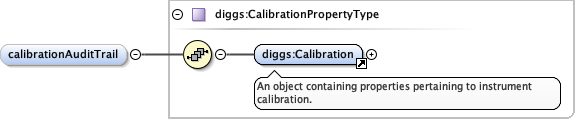

Element diggs:AbstractEquipmentType / diggs:calibrationAuditTrail
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramKernel_xsd_Element_diggs_Calibration.tmp#CalibrationKernel_xsd_Complex_Type_diggs_CalibrationPropertyType.tmp#CalibrationPropertyType
Type diggs:CalibrationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Calibration
Instance

<diggs:calibrationAuditTrail xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:Calibration gml:id="" xml:lang="">{1,1}</diggs:Calibration>
</diggs:calibrationAuditTrail>
Source

<element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded"/>

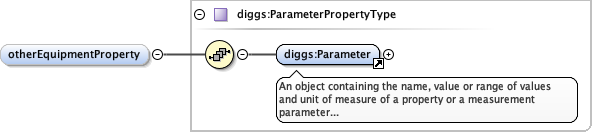

Element diggs:AbstractEquipmentType / diggs:otherEquipmentProperty
Namespace http://diggsml.org/schemas/2.6
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherEquipmentProperty xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:Parameter gml:id="" diggs:index="">{1,1}</diggs:Parameter>
</diggs:otherEquipmentProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType"/>

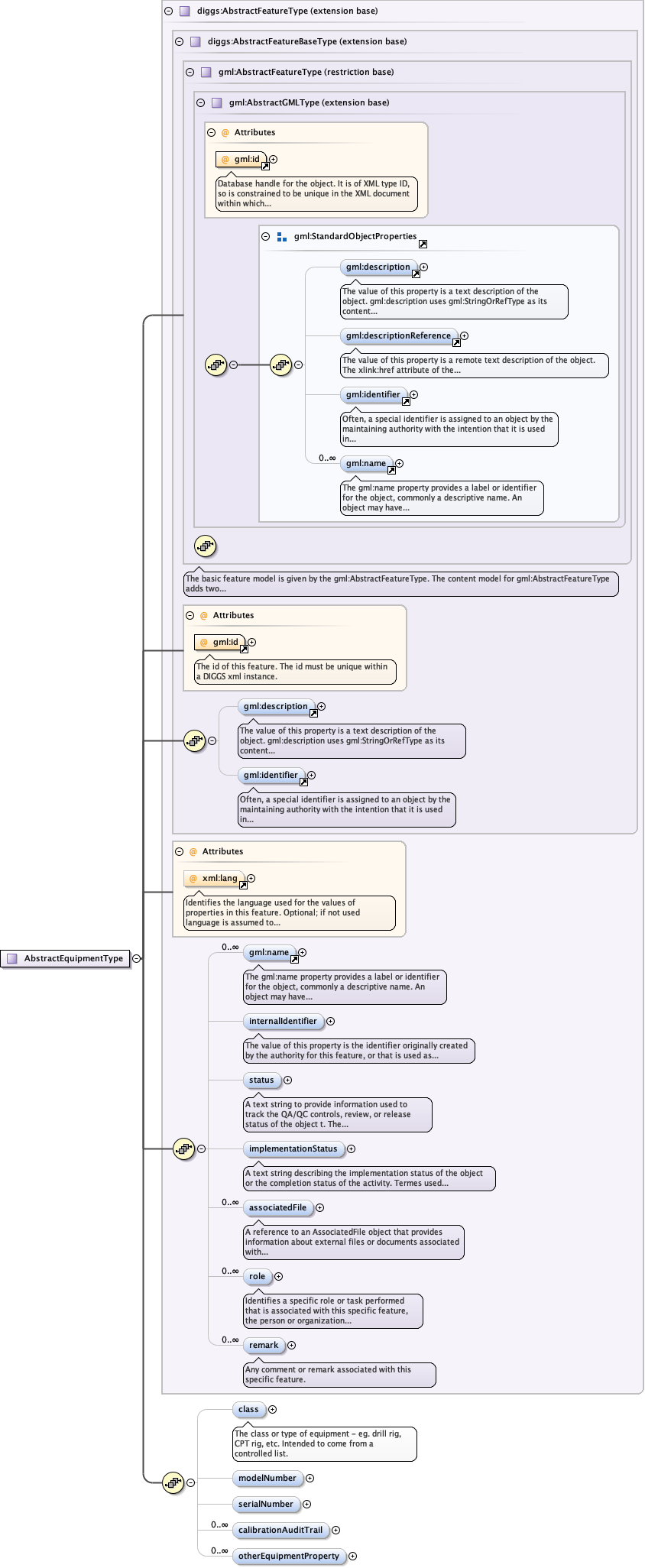

Complex Type diggs:AbstractEquipmentType
Namespace http://diggsml.org/schemas/2.6
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_statusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentProperty
Type extension of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractEquipmentType" abstract="true">
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element name="class" type="gml:CodeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The class or type of equipment - eg. drill rig, CPT rig, etc. Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element name="modelNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1"/>
        <element name="serialNumber" type="diggs:DiggsStringType" minOccurs="0" maxOccurs="1"/>
        <element name="calibrationAuditTrail" type="diggs:CalibrationPropertyType" minOccurs="0" maxOccurs="unbounded"/>
        <element maxOccurs="unbounded" minOccurs="0" name="otherEquipmentProperty" type="diggs:ParameterPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
