Element diggs:AbstractLinearSamplingFeatureType / diggs:centerLine
Namespace http://diggsml.org/schemas/2.6
Annotations

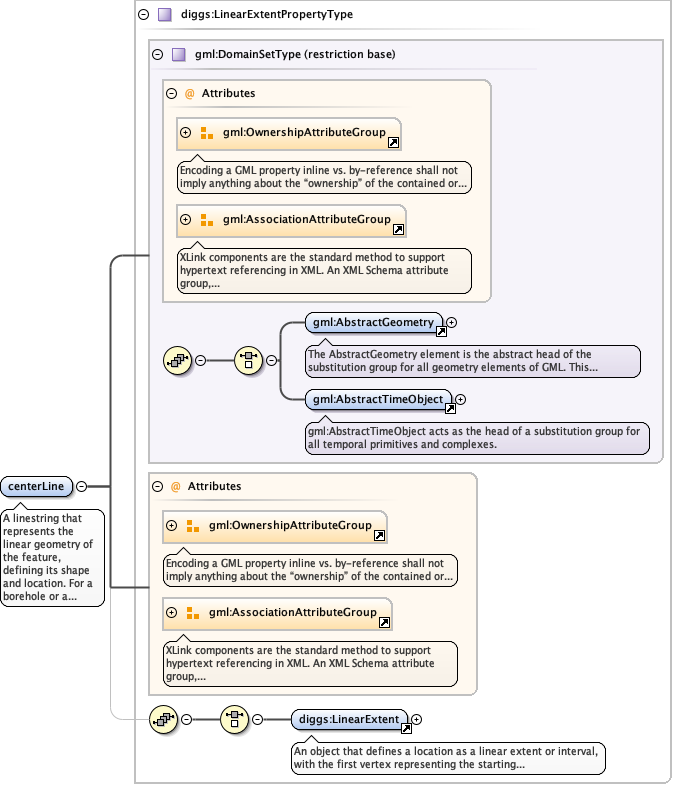

A linestring that represents the linear geometry of the feature, defining its shape and location. For a borehole or a sounding, the linestring would represent the borehole's trajectory in 3D space. Multiple centerlines can be defined (all associated with the same reference point) to define complex objects such as a wellbore with sidetracks, or different reference datums for a single borehole.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:LinearExtent
Instance

<diggs:centerLine xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:centerLine>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="centerLine" type="diggs:LinearExtentPropertyType" maxOccurs="unbounded" minOccurs="1">
  <annotation>
    <documentation>A linestring that represents the linear geometry of the feature, defining its shape and location. For a borehole or a sounding, the linestring would represent the borehole's trajectory in 3D space. Multiple centerlines can be defined (all associated with the same reference point) to define complex objects such as a wellbore with sidetracks, or different reference datums for a single borehole.</documentation>
  </annotation>
</element>
Element diggs:AbstractLinearSamplingFeatureType / diggs:linearReferencing
Namespace http://diggsml.org/schemas/2.6
Annotations

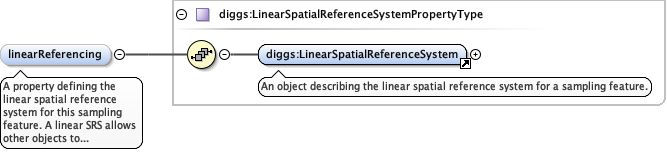

A property defining the linear spatial reference system for this sampling feature. A linear SRS allows other objects to reference their position (location) on the sampling feature with 1D coordinates that represents distance along the linear sampling feature, typically from the centerline origin. For sampling features such as boreholes the linear SRS coordinates define measured depths down the hole's centerline.
Diagram
DiagramKernel_xsd_Element_diggs_LinearSpatialReferenceSystem.tmp#LinearSpatialReferenceSystemKernel_xsd_Complex_Type_diggs_LinearSpatialReferenceSystemPropertyType.tmp#LinearSpatialReferenceSystemPropertyType
Type diggs:LinearSpatialReferenceSystemPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LinearSpatialReferenceSystem
Instance

<diggs:linearReferencing xmlns:diggs="http://diggsml.org/schemas/2.6">
  <diggs:LinearSpatialReferenceSystem gml:id="">{1,1}</diggs:LinearSpatialReferenceSystem>
</diggs:linearReferencing>
Source

<element name="linearReferencing" type="diggs:LinearSpatialReferenceSystemPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A property defining the linear spatial reference system for this sampling feature. A linear SRS allows other objects to reference their position (location) on the sampling feature with 1D coordinates that represents distance along the linear sampling feature, typically from the centerline origin. For sampling features such as boreholes the linear SRS coordinates define measured depths down the hole's centerline.</documentation>
  </annotation>
</element>
Element diggs:AbstractLinearSamplingFeatureType / diggs:plunge
Namespace http://diggsml.org/schemas/2.6
Annotations

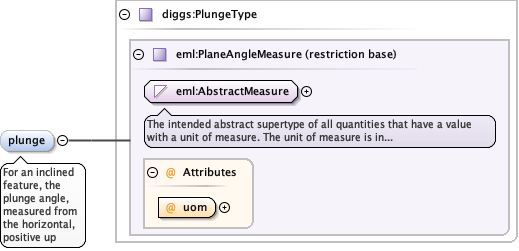

For an inclined feature, the plunge angle, measured from
the horizontal, positive up
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureKernel_xsd_Complex_Type_diggs_PlungeType.tmp#PlungeType
Type diggs:PlungeType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="plunge" type="diggs:PlungeType">
  <annotation>
    <documentation>For an inclined feature, the plunge angle, measured from the horizontal, positive up</documentation>
  </annotation>
</element>
Element diggs:AbstractLinearSamplingFeatureType / diggs:bearing
Namespace http://diggsml.org/schemas/2.6
Annotations

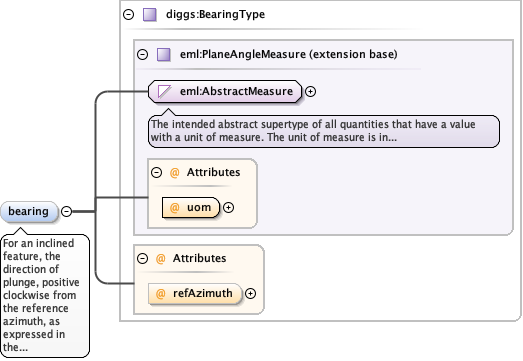

For an inclined feature, the direction of plunge,
positive clockwise from the reference azimuth, as expressed in the
refAzimuth attribute.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasure_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasure.tmp#PlaneAngleMeasureKernel_xsd_Complex_Type_diggs_BearingType.tmp#BearingType_refAzimuthKernel_xsd_Complex_Type_diggs_BearingType.tmp#BearingType
Type diggs:BearingType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
refAzimuth witsml:AziRef optional
uom eml:PlaneAngleUom required
Source

<element minOccurs="0" name="bearing" type="diggs:BearingType">
  <annotation>
    <documentation>For an inclined feature, the direction of plunge, positive clockwise from the reference azimuth, as expressed in the refAzimuth attribute.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractLinearSamplingFeatureType
Namespace http://diggsml.org/schemas/2.6

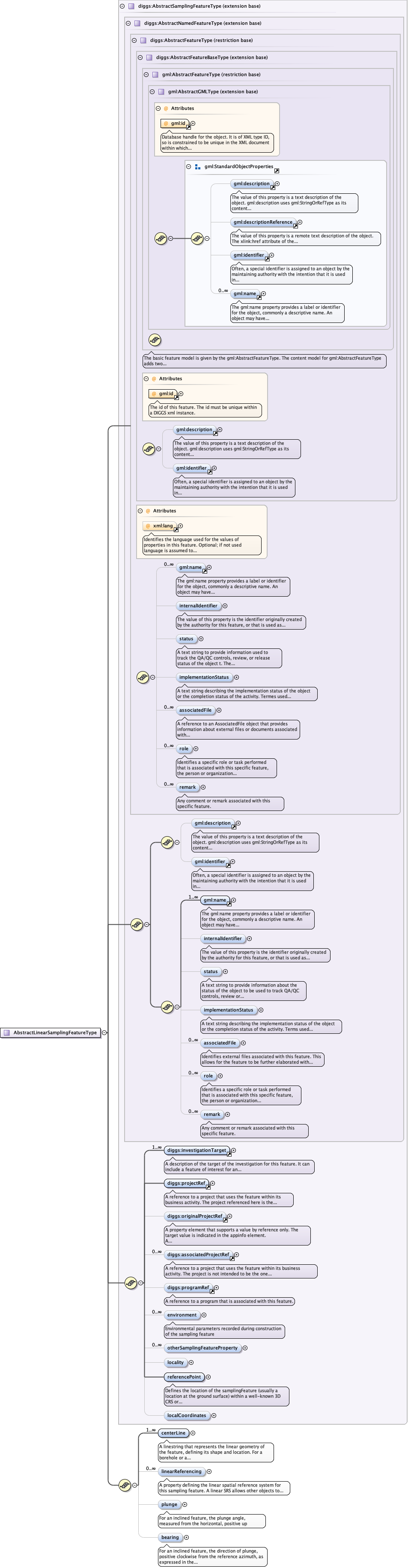

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_statusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_internalIdentifierKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_statusKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_implementationStatusKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeKernel_xsd_Element_diggs_investigationTarget.tmp#investigationTargetKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefKernel_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesKernel_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_centerLineKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_linearReferencingKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_plungeKernel_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_bearing
Type extension of diggs:AbstractSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:plunge, diggs:programRef, diggs:projectRef, diggs:referencePoint, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AbstractLinearSamplingFeatureType">
  <complexContent>
    <extension base="diggs:AbstractSamplingFeatureType">
      <sequence>
        <element name="centerLine" type="diggs:LinearExtentPropertyType" maxOccurs="unbounded" minOccurs="1">
          <annotation>
            <documentation>A linestring that represents the linear geometry of the feature, defining its shape and location. For a borehole or a sounding, the linestring would represent the borehole's trajectory in 3D space. Multiple centerlines can be defined (all associated with the same reference point) to define complex objects such as a wellbore with sidetracks, or different reference datums for a single borehole.</documentation>
          </annotation>
        </element>
        <element name="linearReferencing" type="diggs:LinearSpatialReferenceSystemPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A property defining the linear spatial reference system for this sampling feature. A linear SRS allows other objects to reference their position (location) on the sampling feature with 1D coordinates that represents distance along the linear sampling feature, typically from the centerline origin. For sampling features such as boreholes the linear SRS coordinates define measured depths down the hole's centerline.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plunge" type="diggs:PlungeType">
          <annotation>
            <documentation>For an inclined feature, the plunge angle, measured from the horizontal, positive up</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="bearing" type="diggs:BearingType">
          <annotation>
            <documentation>For an inclined feature, the direction of plunge, positive clockwise from the reference azimuth, as expressed in the refAzimuth attribute.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
