Element gml:polarCS
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:polarCS is an association role to the polar coordinate system used by this
CRS.

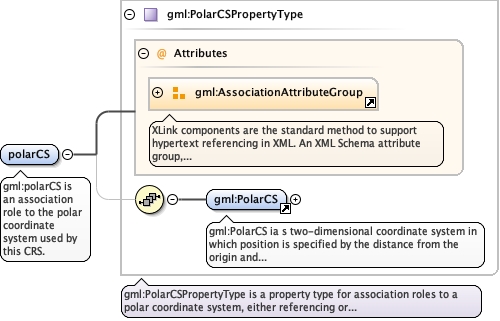

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_PolarCS_1.tmp#PolarCSgml3_2Profile_diggs_xsd_Complex_Type_gml_PolarCSPropertyType.tmp#PolarCSPropertyType
Type gml:PolarCSPropertyType
Properties
content complex
Used by
Complex Type gml:EngineeringCRSType
Model
gml:PolarCS
Children gml:PolarCS
Instance

<gml:polarCS xlink:href="" nilReason="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:PolarCS aggregationType="" gml:id="">{1,1}</gml:PolarCS>
</gml:polarCS>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="polarCS" type="gml:PolarCSPropertyType">
  <annotation>
    <documentation>gml:polarCS is an association role to the polar coordinate system used by this CRS.</documentation>
  </annotation>
</element>
