Element gml:MultiGeometry
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:MultiGeometry is a collection of one or more GML geometry objects of
arbitrary type. The members of the geometric aggregate may be specified either using the
"standard" property (gml:geometryMember) or the array property (gml:geometryMembers). It is
also valid to use both the "standard" and the array properties in the same
collection.

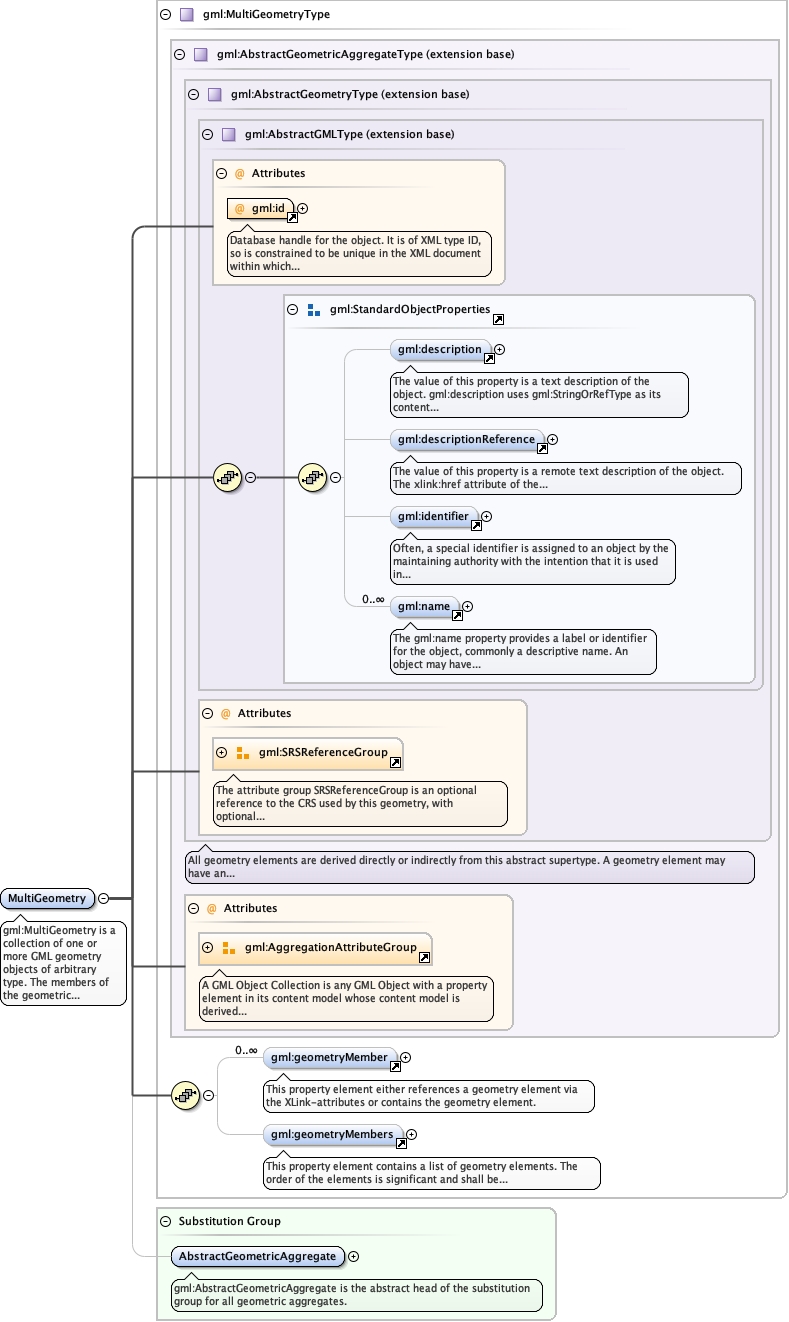

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometricAggregateType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometricAggregateTypegml3_2Profile_diggs_xsd_Element_gml_geometryMember.tmp#geometryMembergml3_2Profile_diggs_xsd_Element_gml_geometryMembers.tmp#geometryMembersgml3_2Profile_diggs_xsd_Complex_Type_gml_MultiGeometryType.tmp#MultiGeometryTypegml3_2Profile_diggs_xsd_Element_gml_AbstractGeometricAggregate.tmp#AbstractGeometricAggregate
Type gml:MultiGeometryType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children gml:description, gml:descriptionReference, gml:geometryMember, gml:geometryMembers, gml:identifier, gml:name
Instance

<gml:MultiGeometry aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:geometryMember xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:geometryMember>
  <gml:geometryMembers owns="false">{0,1}</gml:geometryMembers>
</gml:MultiGeometry>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="MultiGeometry" type="gml:MultiGeometryType" substitutionGroup="gml:AbstractGeometricAggregate">
  <annotation>
    <documentation>gml:MultiGeometry is a collection of one or more GML geometry objects of arbitrary type. The members of the geometric aggregate may be specified either using the "standard" property (gml:geometryMember) or the array property (gml:geometryMembers). It is also valid to use both the "standard" and the array properties in the same collection.</documentation>
  </annotation>
</element>
