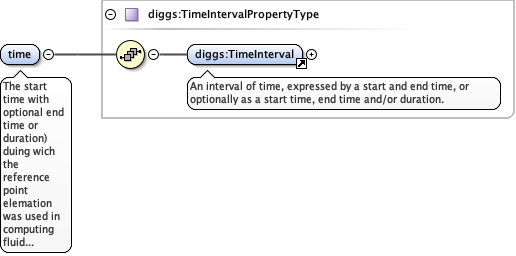

Element diggs:ReferencePointType / diggs:time
Namespace http://diggsml.org/schema-dev
Annotations

The start time with optional end time or duration) duing wich the reference point elemation was used in computing fluid levels.
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
Model
Children diggs:TimeInterval
Instance

<diggs:time xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:time>
Source

<element name="time" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The start time with optional end time or duration) duing wich the reference point elemation was used in computing fluid levels.</documentation>
  </annotation>
</element>

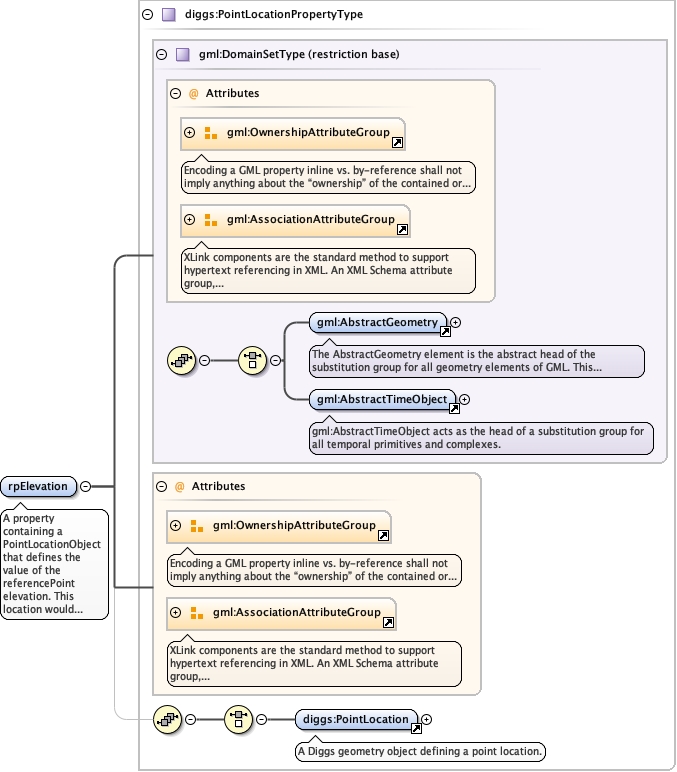

Element diggs:ReferencePointType / diggs:rpElevation
Namespace http://diggsml.org/schema-dev
Annotations

A property containing a PointLocationObject that defines the value of the referencePoint elevation. This location would typically be defined by a 1D Vertical CRS specified in the srsName attribute.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_PointLocation.tmp#PointLocationKernel_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:PointLocation
Instance

<diggs:rpElevation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:rpElevation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="rpElevation" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>A property containing a PointLocationObject that defines the value of the referencePoint elevation. This location would typically be defined by a 1D Vertical CRS specified in the srsName attribute.</documentation>
  </annotation>
</element>

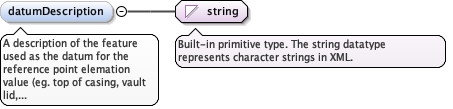

Element diggs:ReferencePointType / diggs:datumDescription
Namespace http://diggsml.org/schema-dev
Annotations

A description of the feature used as the datum for the reference point elemation value (eg. top of casing, vault lid, etc.)
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="datumDescription" type="string">
  <annotation>
    <documentation>A description of the feature used as the datum for the reference point elemation value (eg. top of casing, vault lid, etc.)</documentation>
  </annotation>
</element>

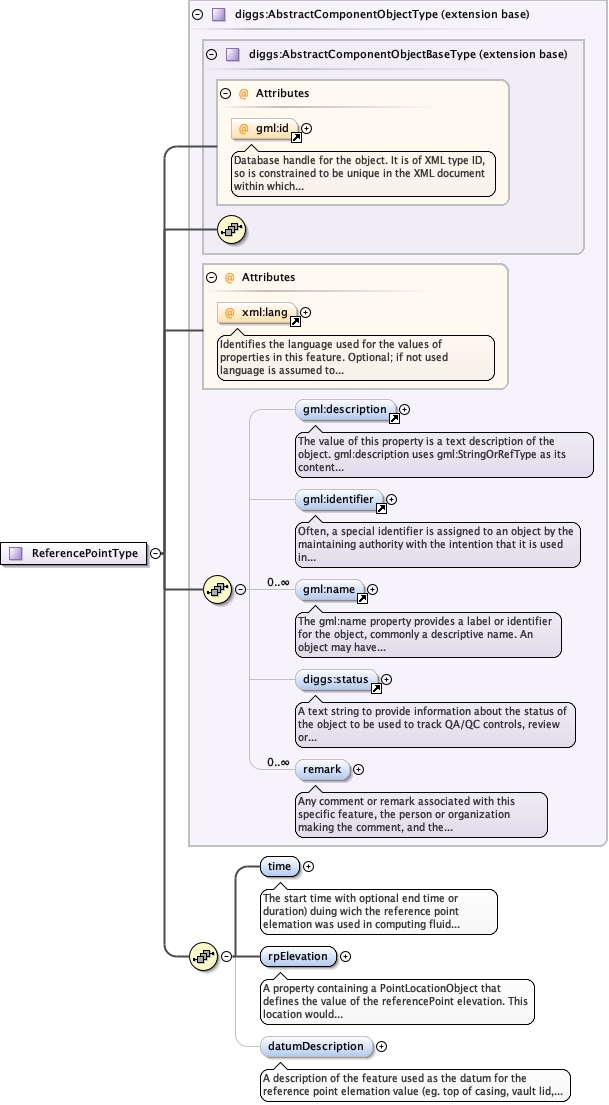

Complex Type diggs:ReferencePointType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeTestProcedures_xsd_Complex_Type_diggs_ReferencePointType.tmp#ReferencePointType_timeTestProcedures_xsd_Complex_Type_diggs_ReferencePointType.tmp#ReferencePointType_rpElevationTestProcedures_xsd_Complex_Type_diggs_ReferencePointType.tmp#ReferencePointType_datumDescription
Type extension of diggs:AbstractComponentObjectType
Type hierarchy
Used by
Model
Children diggs:datumDescription, diggs:remark, diggs:rpElevation, diggs:status, diggs:time, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ReferencePointType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectType">
      <sequence>
        <element name="time" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The start time with optional end time or duration) duing wich the reference point elemation was used in computing fluid levels.</documentation>
          </annotation>
        </element>
        <element name="rpElevation" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>A property containing a PointLocationObject that defines the value of the referencePoint elevation. This location would typically be defined by a 1D Vertical CRS specified in the srsName attribute.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="datumDescription" type="string">
          <annotation>
            <documentation>A description of the feature used as the datum for the reference point elemation value (eg. top of casing, vault lid, etc.)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
