Element diggs:TaperType / diggs:intervalLocation
Namespace http://diggsml.org/schema-dev
Annotations

A property that defines the top and bottom depths of the
interval being described.

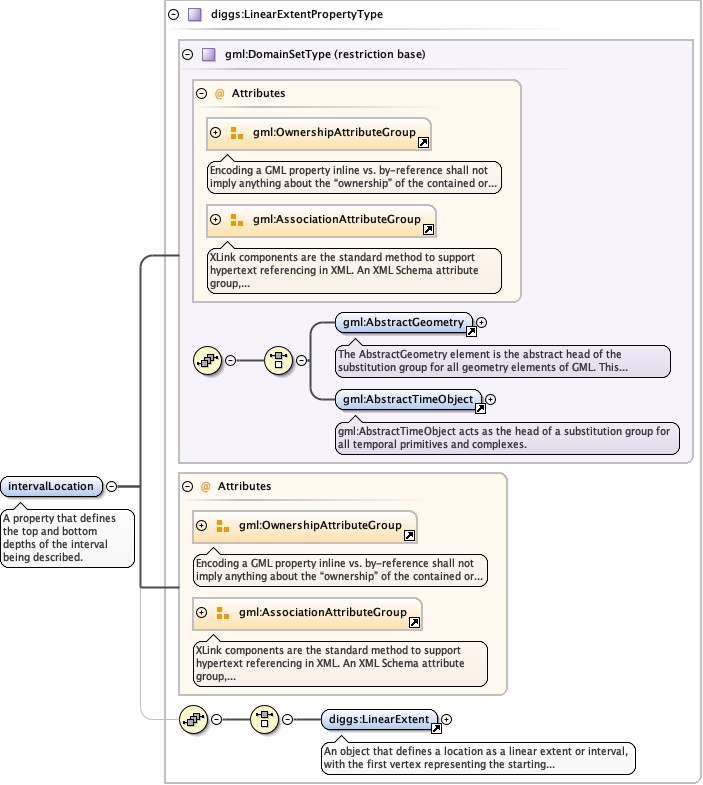

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_LinearExtent.tmp#LinearExtentKernel_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:LinearExtent
Instance

<diggs:intervalLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:intervalLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="intervalLocation" type="diggs:LinearExtentPropertyType">
  <annotation>
    <documentation>A property that defines the top and bottom depths of the interval being described.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:widthAtTop
Namespace http://diggsml.org/schema-dev
Annotations

Width of the pile at the top of the
interval.

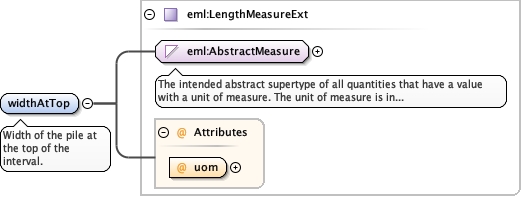

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="widthAtTop" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Width of the pile at the top of the interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:widthAtBottom
Namespace http://diggsml.org/schema-dev
Annotations

Width of the pile at the bottom of the
interval.

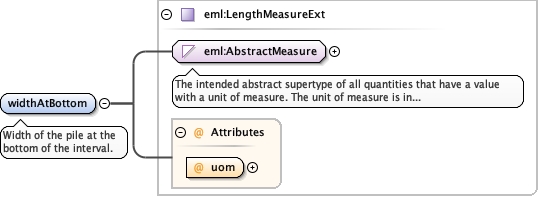

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element name="widthAtBottom" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Width of the pile at the bottom of the interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:pileMaterial
Namespace http://diggsml.org/schema-dev
Annotations

The material the pile is constructed of in this
interval.

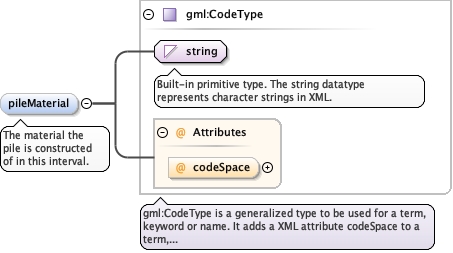

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pileMaterial" type="gml:CodeType">
  <annotation>
    <documentation>The material the pile is constructed of in this interval.</documentation>
  </annotation>
</element>
Element diggs:TaperType / diggs:pileShape
Namespace http://diggsml.org/schema-dev
Annotations

The shape of the pile cross section.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="pileShape" type="gml:CodeType">
  <annotation>
    <documentation>The shape of the pile cross section.</documentation>
  </annotation>
</element>
Complex Type diggs:TaperType
Namespace http://diggsml.org/schema-dev
Annotations

Defines properties of the pile over a specified depth
interval.

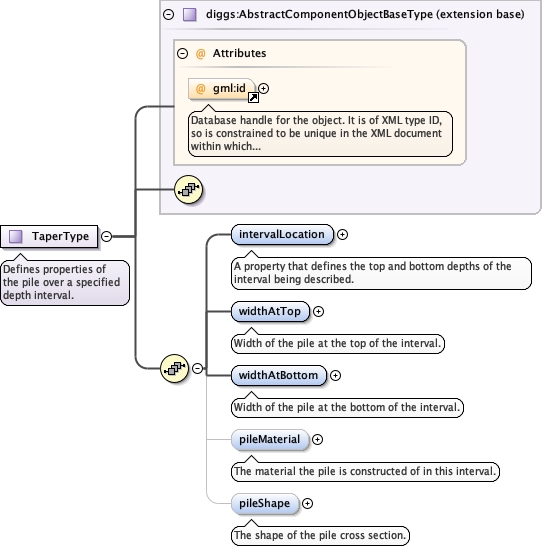

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypePiling_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_intervalLocationPiling_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_widthAtTopPiling_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_widthAtBottomPiling_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_pileMaterialPiling_xsd_Complex_Type_diggs_TaperType.tmp#TaperType_pileShape
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Element diggs:Taper
Model
Children diggs:intervalLocation, diggs:pileMaterial, diggs:pileShape, diggs:widthAtBottom, diggs:widthAtTop
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TaperType">
  <annotation>
    <documentation>Defines properties of the pile over a specified depth interval.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element name="intervalLocation" type="diggs:LinearExtentPropertyType">
          <annotation>
            <documentation>A property that defines the top and bottom depths of the interval being described.</documentation>
          </annotation>
        </element>
        <element name="widthAtTop" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Width of the pile at the top of the interval.</documentation>
          </annotation>
        </element>
        <element name="widthAtBottom" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Width of the pile at the bottom of the interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileMaterial" type="gml:CodeType">
          <annotation>
            <documentation>The material the pile is constructed of in this interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileShape" type="gml:CodeType">
          <annotation>
            <documentation>The shape of the pile cross section.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
