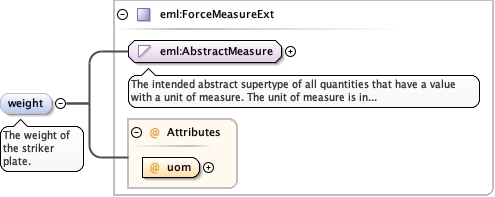

Element diggs:StrikerPlateType / diggs:weight
Namespace http://diggsml.org/schema-dev
Annotations

The weight of the striker plate.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="weight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The weight of the striker plate.</documentation>
  </annotation>
</element>
Element diggs:StrikerPlateType / diggs:diameter
Namespace http://diggsml.org/schema-dev
Annotations

The diameter of the striker plate.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="diameter" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The diameter of the striker plate.</documentation>
  </annotation>
</element>

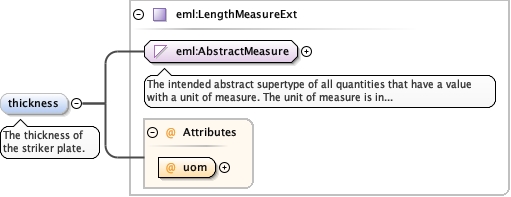

Element diggs:StrikerPlateType / diggs:thickness
Namespace http://diggsml.org/schema-dev
Annotations

The thickness of the striker plate.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="thickness" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The thickness of the striker plate.</documentation>
  </annotation>
</element>

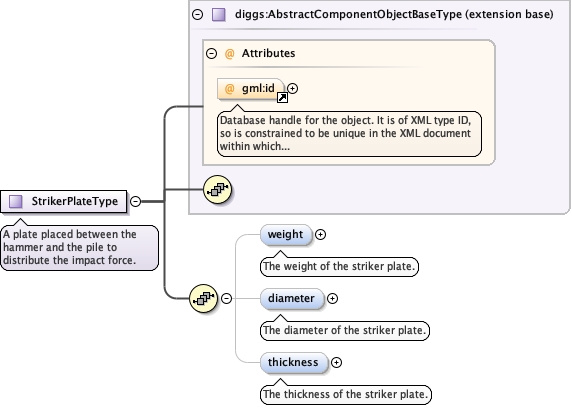

Complex Type diggs:StrikerPlateType
Namespace http://diggsml.org/schema-dev
Annotations

A plate placed between the hammer and the pile to distribute the impact
force.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypePiling_xsd_Complex_Type_diggs_StrikerPlateType.tmp#StrikerPlateType_weightPiling_xsd_Complex_Type_diggs_StrikerPlateType.tmp#StrikerPlateType_diameterPiling_xsd_Complex_Type_diggs_StrikerPlateType.tmp#StrikerPlateType_thickness
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:diameter, diggs:thickness, diggs:weight
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="StrikerPlateType">
  <annotation>
    <documentation>A plate placed between the hammer and the pile to distribute the impact force.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element minOccurs="0" name="weight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The weight of the striker plate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="diameter" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The diameter of the striker plate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="thickness" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The thickness of the striker plate.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
