Element diggs:PDAAccelerometerType / diggs:calibrationConstant
Namespace http://diggsml.org/schema-dev
Annotations

Calibration factor used to convert raw sensor readings to
engineering units.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="calibrationConstant" type="double">
  <annotation>
    <documentation>Calibration factor used to convert raw sensor readings to engineering units.</documentation>
  </annotation>
</element>

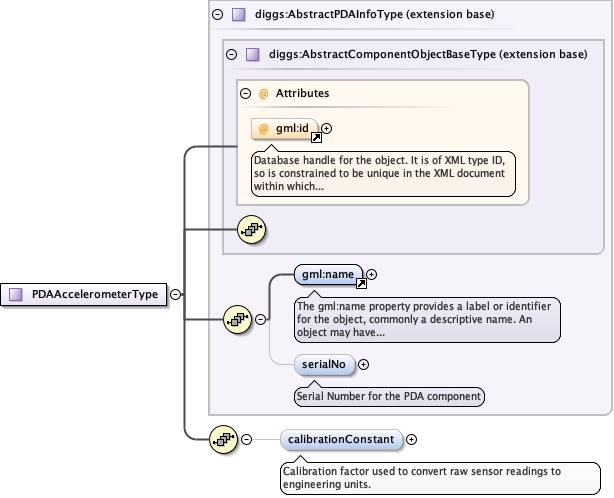

Complex Type diggs:PDAAccelerometerType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#namePiling_xsd_Complex_Type_diggs_AbstractPDAInfoType.tmp#AbstractPDAInfoType_serialNoPiling_xsd_Complex_Type_diggs_AbstractPDAInfoType.tmp#AbstractPDAInfoTypePiling_xsd_Complex_Type_diggs_PDAAccelerometerType.tmp#PDAAccelerometerType_calibrationConstant
Type extension of diggs:AbstractPDAInfoType
Type hierarchy
Used by
Model
Children diggs:calibrationConstant, diggs:serialNo, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PDAAccelerometerType">
  <complexContent>
    <extension base="diggs:AbstractPDAInfoType">
      <sequence>
        <element minOccurs="0" name="calibrationConstant" type="double">
          <annotation>
            <documentation>Calibration factor used to convert raw sensor readings to engineering units.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
