Complex Type diggs:ThermalResistivityMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Thermal resistivity: the reciprocal of thermal conductivity, a material's opposition to heat flow per unit length. Reported by thermal needle probe testing (ASTM D5334) per IEEE Std 442. Not part of the Energistics Unit of Measure Dictionary; the underlying quantity class and units are a DIGGS extension (see diggs:DiggsThermalResistivityUomEnumBaseType). Common units include mK/W (equivalently deltaK.m/W).

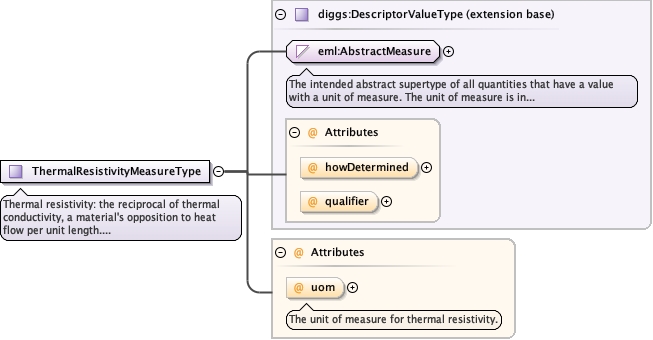

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermalResistivityMeasureType.tmp#ThermalResistivityMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsThermalResistivityUomEnumType optional
The unit of measure for thermal resistivity.
Source

<complexType name="ThermalResistivityMeasureType">
  <annotation>
    <documentation>Thermal resistivity: the reciprocal of thermal conductivity, a material's opposition to heat flow per unit length. Reported by thermal needle probe testing (ASTM D5334) per IEEE Std 442. Not part of the Energistics Unit of Measure Dictionary; the underlying quantity class and units are a DIGGS extension (see diggs:DiggsThermalResistivityUomEnumBaseType). Common units include mK/W (equivalently deltaK.m/W).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:DiggsThermalResistivityUomEnumType">
        <annotation>
          <documentation>The unit of measure for thermal resistivity.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ThermalResistivityMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for thermal resistivity.
Type diggs:DiggsThermalResistivityUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:DiggsThermalResistivityUomEnumType">
  <annotation>
    <documentation>The unit of measure for thermal resistivity.</documentation>
  </annotation>
</attribute>
