Complex Type eml:VolumePerTimePerPressureMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

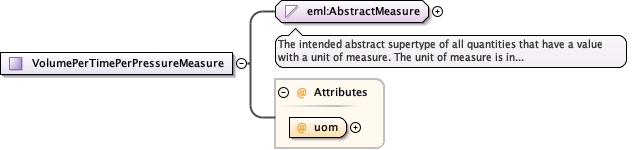

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimePerPressureMeasure.tmp#VolumePerTimePerPressureMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:VolumePerTimePerPressureUom required
Source

<xs:complexType name="VolumePerTimePerPressureMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumePerTimePerPressureUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumePerTimePerPressureMeasure / @uom
Namespace No namespace
Type eml:VolumePerTimePerPressureUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1000 ft3/(psi.d)
(thousand cubic foot per day) per psi
enumeration bbl/(kPa.d)
(barrel per day) per kilopascal
enumeration bbl/(psi.d)
(barrel per day) per psi
enumeration L/(bar.min)
(litre per minute) per bar
enumeration m3/(bar.d)
(cubic metre per day) per bar
enumeration m3/(bar.h)
(cubic metre per hour) per bar
enumeration m3/(bar.min)
(cubic metre per minute) per bar
enumeration m3/(kPa.d)
(cubic metre per day) per kilopascal
enumeration m3/(kPa.h)
(cubic metre per hour) per kilopascal
enumeration m3/(Pa.s)
cubic metre per pascal second
enumeration m3/(psi.d)
(cubic metre per day) per psi
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumePerTimePerPressureUom"/>
