Complex Type eml:VolumePerTimePerAreaMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

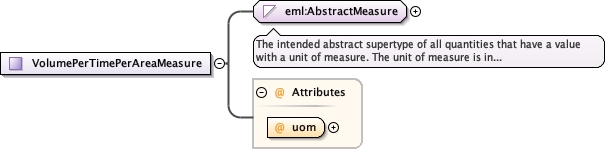

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerTimePerAreaMeasure.tmp#VolumePerTimePerAreaMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:VolumePerTimePerAreaUom required
Source

<xs:complexType name="VolumePerTimePerAreaMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumePerTimePerAreaUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumePerTimePerAreaMeasure / @uom
Namespace No namespace
Type eml:VolumePerTimePerAreaUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration ft3/(min.ft2)
cubic foot per minute square foot
enumeration ft3/(s.ft2)
cubic foot per second square foot
enumeration gal[UK]/(h.ft2)
UK gallon per hour square foot
enumeration gal[UK]/(h.in2)
UK gallon per hour square inch
enumeration gal[UK]/(min.ft2)
UK gallon per minute square foot
enumeration gal[US]/(h.ft2)
US gallon per hour square foot
enumeration gal[US]/(h.in2)
US gallon per hour square inch
enumeration gal[US]/(min.ft2)
US gallon per minute square foot
enumeration m3/(s.m2)
cubic metre per second square metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumePerTimePerAreaUom"/>
