Complex Type eml:VolumePerRotationMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

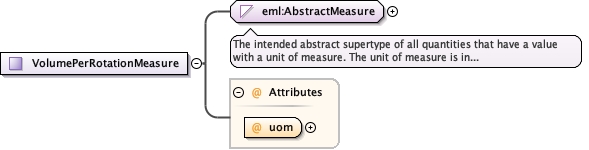

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerRotationMeasure.tmp#VolumePerRotationMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:VolumePerRotationUom required
Source

<xs:complexType name="VolumePerRotationMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumePerRotationUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumePerRotationMeasure / @uom
Namespace No namespace
Type eml:VolumePerRotationUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration ft3/rad
cubic foot per radian
enumeration m3/rad
cubic metre per radian
enumeration m3/rev
cubic metre per revolution
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumePerRotationUom"/>
