Complex Type eml:VolumePerLengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

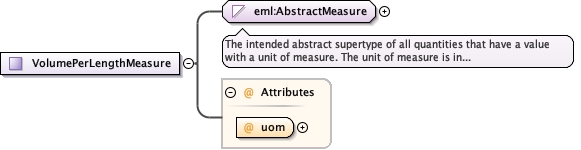

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerLengthMeasure.tmp#VolumePerLengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Attributes
QName Type Use
uom eml:VolumePerLengthUom required
Source

<xs:complexType name="VolumePerLengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumePerLengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumePerLengthMeasure / @uom
Namespace No namespace
Type eml:VolumePerLengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 0.01 dm3/km
cubic decimetre per hundred kilometre
enumeration 0.01 L/km
litre per hundred kilometre
enumeration bbl/ft
barrel per foot
enumeration bbl/in
barrel per inch
enumeration bbl/mi
barrel per mile
enumeration dm3/m
cubic decimetre per metre
enumeration ft3/ft
cubic foot per foot
enumeration gal[UK]/mi
UK gallon per mile
enumeration gal[US]/ft
US gallon per foot
enumeration gal[US]/mi
US gallon per mile
enumeration in3/ft
cubic inch per foot
enumeration L/m
litre per metre
enumeration m3/km
cubic metre per kilometre
enumeration m3/m
cubic metre per metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumePerLengthUom"/>
