Complex Type eml:VolumeFlowRatePerVolumeFlowRateMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

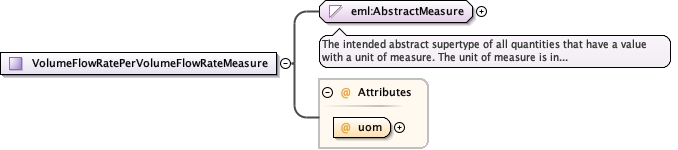

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeFlowRatePerVolumeFlowRateMeasure.tmp#VolumeFlowRatePerVolumeFlowRateMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
Source

<xs:complexType name="VolumeFlowRatePerVolumeFlowRateMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:VolumeFlowRatePerVolumeFlowRateUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:VolumeFlowRatePerVolumeFlowRateMeasure / @uom
Namespace No namespace
Type eml:VolumeFlowRatePerVolumeFlowRateUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration %
percent
enumeration (bbl/d)/(bbl/d)
(barrel per day) per (barrel per day)
enumeration (m3/d)/(m3/d)
(cubic metre per day) per (cubic metre per day)
enumeration (m3/s)/(m3/s)
(cubic metre per second) per (cubic metre per second)
enumeration 1E6 (ft3/d)/(bbl/d)
(million cubic foot per day) per (barrel per day)
enumeration Euc
euclid
Used by
Source

<xs:attribute name="uom" use="required" type="eml:VolumeFlowRatePerVolumeFlowRateUom"/>
