Complex Type eml:ReciprocalVolumeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

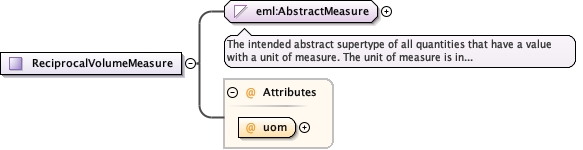

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ReciprocalVolumeMeasure.tmp#ReciprocalVolumeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:ReciprocalVolumeUom required
Source

<xs:complexType name="ReciprocalVolumeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:ReciprocalVolumeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:ReciprocalVolumeMeasure / @uom
Namespace No namespace
Type eml:ReciprocalVolumeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1/bbl
per barrel
enumeration 1/ft3
per cubic foot
enumeration 1/gal[UK]
per UK gallon
enumeration 1/gal[US]
per US gallon
enumeration 1/L
per litre
enumeration 1/m3
per cubic metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:ReciprocalVolumeUom"/>
