Complex Type eml:ReciprocalPressureMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

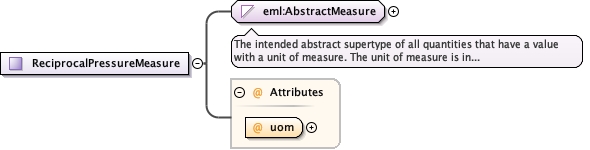

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ReciprocalPressureMeasure.tmp#ReciprocalPressureMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:ReciprocalPressureUom required
Source

<xs:complexType name="ReciprocalPressureMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:ReciprocalPressureUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:ReciprocalPressureMeasure / @uom
Namespace No namespace
Type eml:ReciprocalPressureUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1/bar
per bar
enumeration 1/kPa
per kilopascal
enumeration 1/Pa
per pascal
enumeration 1/pPa
per picopascal
enumeration 1/psi
per psi
enumeration 1/upsi
per millionth of psi
Used by
Source

<xs:attribute name="uom" use="required" type="eml:ReciprocalPressureUom"/>
