Complex Type eml:PressurePerTimeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

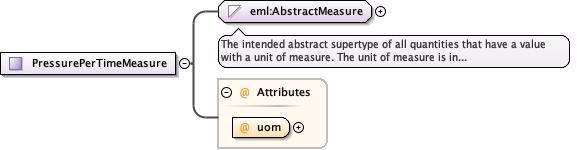

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressurePerTimeMeasure.tmp#PressurePerTimeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:PressurePerTimeUom required
Source

<xs:complexType name="PressurePerTimeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:PressurePerTimeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:PressurePerTimeMeasure / @uom
Namespace No namespace
Type eml:PressurePerTimeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration atm/h
standard atmosphere per hour
enumeration bar/h
bar per hour
enumeration kPa/h
kilopascal per hour
enumeration kPa/min
kilopascal per min
enumeration MPa/h
megapascal per hour
enumeration Pa/h
pascal per hour
enumeration Pa/s
pascal per second
enumeration psi/h
psi per hour
enumeration psi/min
psi per minute
Used by
Source

<xs:attribute name="uom" use="required" type="eml:PressurePerTimeUom"/>
