Complex Type eml:PressurePerPressureMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

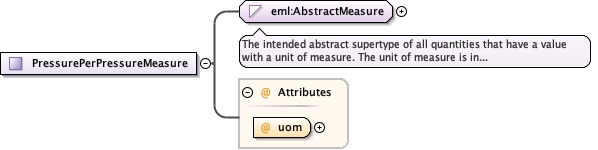

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressurePerPressureMeasure.tmp#PressurePerPressureMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:PressurePerPressureUom required
Source

<xs:complexType name="PressurePerPressureMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:PressurePerPressureUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:PressurePerPressureMeasure / @uom
Namespace No namespace
Type eml:PressurePerPressureUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration atm/atm
standard atmosphere per standard atmosphere
enumeration bar/bar
bar per bar
enumeration Euc
euclid
enumeration kPa/kPa
kilopascal per kilopascal
enumeration MPa/MPa
megapascal per megapascal
enumeration Pa/Pa
pascal per pascal
enumeration psi/psi
psi per psi
Used by
Source

<xs:attribute name="uom" use="required" type="eml:PressurePerPressureUom"/>
