Complex Type eml:MolarVolumeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

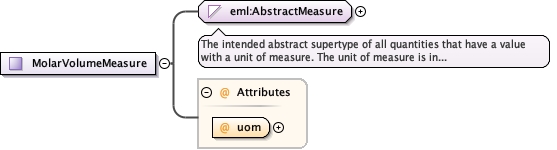

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MolarVolumeMeasure.tmp#MolarVolumeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:MolarVolumeUom required
Source

<xs:complexType name="MolarVolumeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:MolarVolumeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:MolarVolumeMeasure / @uom
Namespace No namespace
Type eml:MolarVolumeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration dm3/kmol
cubic decimetre per kilogram-mole
enumeration ft3/lbmol
cubic foot per pound-mass-mole
enumeration L/kmol
litre per kilogram-mole
enumeration L/mol
litre per gram-mole
enumeration m3/kmol
cubic metre per kilogram-mole
enumeration m3/mol
cubic metre per gram-mole
Used by
Complex Type eml:MolarVolumeMeasure
Source

<xs:attribute name="uom" use="required" type="eml:MolarVolumeUom"/>
