Complex Type eml:MolarHeatCapacityMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

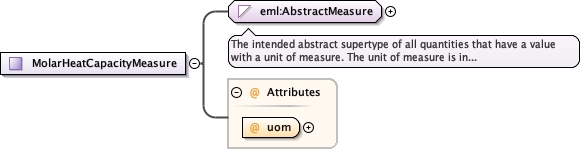

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MolarHeatCapacityMeasure.tmp#MolarHeatCapacityMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:MolarHeatCapacityUom required
Source

<xs:complexType name="MolarHeatCapacityMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:MolarHeatCapacityUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:MolarHeatCapacityMeasure / @uom
Namespace No namespace
Type eml:MolarHeatCapacityUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration Btu[IT]/(lbmol.deltaF)
BTU per pound-mass-mole delta Fahrenheit
enumeration cal[th]/(mol.deltaC)
calorie per gram-mole delta Celsius
enumeration J/(mol.deltaK)
joule per gram-mole delta kelvin
enumeration kJ/(kmol.deltaK)
kilojoule per kilogram-mole delta kelvin
Used by
Source

<xs:attribute name="uom" use="required" type="eml:MolarHeatCapacityUom"/>
