Complex Type eml:MobilityMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

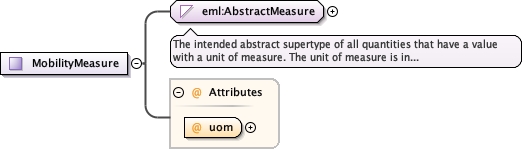

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MobilityMeasure.tmp#MobilityMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:MobilityUom required
Source

<xs:complexType name="MobilityMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:MobilityUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:MobilityMeasure / @uom
Namespace No namespace
Type eml:MobilityUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration D/(Pa.s)
darcy per pascal second
enumeration D/cP
darcy per centipoise
enumeration mD.ft2/(lbf.s)
millidarcy square foot per pound-force second
enumeration mD.in2/(lbf.s)
millidarcy square inch per pound-force second
enumeration mD/(Pa.s)
millidarcy per pascal second
enumeration mD/cP
millidarcy per centipoise
enumeration TD[API]/(Pa.s)
teradarcy-API per pascal second
Used by
Complex Type eml:MobilityMeasure
Source

<xs:attribute name="uom" use="required" type="eml:MobilityUom"/>
