Complex Type eml:MassPerTimeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

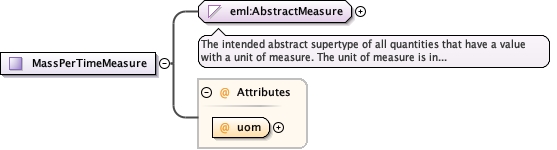

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerTimeMeasure.tmp#MassPerTimeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:MassPerTimeUom required
Source

<xs:complexType name="MassPerTimeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:MassPerTimeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:MassPerTimeMeasure / @uom
Namespace No namespace
Type eml:MassPerTimeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1E6 lbm/a
million pound-mass per julian-year
enumeration g/s
gram per second
enumeration kg/d
kilogram per day
enumeration kg/h
kilogram per hour
enumeration kg/min
kilogram per min
enumeration kg/s
kilogram per second
enumeration lbm/d
pound-mass per day
enumeration lbm/h
pound-mass per hour
enumeration lbm/min
pound-mass per minute
enumeration lbm/s
pound-mass per second
enumeration Mg/a
megagram per julian-year
enumeration Mg/d
megagram per day
enumeration Mg/h
megagram per hour
enumeration Mg/min
megagram per minute
enumeration t/a
tonne per julian-year
enumeration t/d
tonne per day
enumeration t/h
tonne per hour
enumeration t/min
tonne per minute
enumeration ton[UK]/a
UK ton-mass per julian-year
enumeration ton[UK]/d
UK ton-mass per day
enumeration ton[UK]/h
UK ton-mass per hour
enumeration ton[UK]/min
UK ton-mass per minute
enumeration ton[US]/a
US ton-mass per julian-year
enumeration ton[US]/d
US ton-mass per day
enumeration ton[US]/h
US ton-mass per hour
enumeration ton[US]/min
US ton-mass per minute
Used by
Complex Type eml:MassPerTimeMeasure
Source

<xs:attribute name="uom" use="required" type="eml:MassPerTimeUom"/>
XML Schema documentation generated by ® XML Editor.
