Complex Type eml:MassPerAreaMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

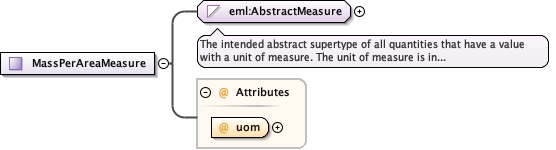

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerAreaMeasure.tmp#MassPerAreaMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:MassPerAreaUom required
Source

<xs:complexType name="MassPerAreaMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:MassPerAreaUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:MassPerAreaMeasure / @uom
Namespace No namespace
Type eml:MassPerAreaUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 0.01 lbm/ft2
pound-mass per hundred square foot
enumeration kg/m2
kilogram per square metre
enumeration lbm/ft2
pound-mass per square foot
enumeration Mg/m2
megagram per square metre
enumeration ton[US]/ft2
US ton-mass per square foot
Used by
Complex Type eml:MassPerAreaMeasure
Source

<xs:attribute name="uom" use="required" type="eml:MassPerAreaUom"/>
