Complex Type eml:KinematicViscosityMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

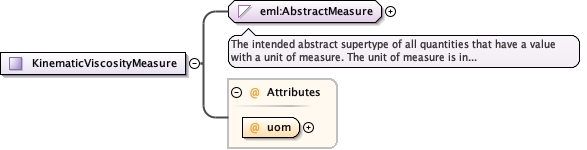

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_KinematicViscosityMeasure.tmp#KinematicViscosityMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:KinematicViscosityUom required
Source

<xs:complexType name="KinematicViscosityMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:KinematicViscosityUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:KinematicViscosityMeasure / @uom
Namespace No namespace
Type eml:KinematicViscosityUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration cm2/s
square centimetre per second
enumeration cSt
centistokes
enumeration ft2/h
square foot per hour
enumeration ft2/s
square foot per second
enumeration in2/s
square inch per second
enumeration m2/h
square metre per hour
enumeration m2/s
square metre per second
enumeration mm2/s
square millimetre per second
enumeration Pa.s.m3/kg
pascal second square metre per kilogram
enumeration St
stokes
Used by
Source

<xs:attribute name="uom" use="required" type="eml:KinematicViscosityUom"/>
