Complex Type eml:HeatTransferCoefficientMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

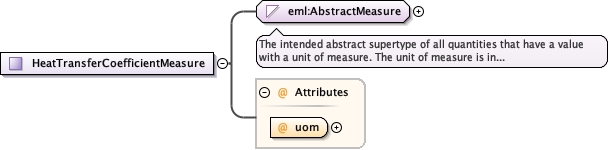

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_HeatTransferCoefficientMeasure.tmp#HeatTransferCoefficientMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:HeatTransferCoefficientUom required
Source

<xs:complexType name="HeatTransferCoefficientMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:HeatTransferCoefficientUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:HeatTransferCoefficientMeasure / @uom
Namespace No namespace
Type eml:HeatTransferCoefficientUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration Btu[IT]/(h.ft2.deltaF)
BTU per hour square foot delta Fahrenheit
enumeration Btu[IT]/(h.ft2.deltaR)
BTU per hour square foot delta Rankine
enumeration Btu[IT]/(h.m2.deltaC)
BTU per hour square metre delta Celsius
enumeration Btu[IT]/(s.ft2.deltaF)
(BTU per second) per square foot delta Fahrenheit
enumeration cal[th]/(h.cm2.deltaC)
calorie per hour square centimetre delta Celsius
enumeration cal[th]/(s.cm2.deltaC)
calorie per second square centimetre delta Celsius
enumeration J/(s.m2.deltaC)
joule per second square metre delta Celsius
enumeration kcal[th]/(h.m2.deltaC)
thousand calorie per hour square metre delta Celsius
enumeration kJ/(h.m2.deltaK)
kilojoule per hour square metre delta kelvin
enumeration kW/(m2.deltaK)
kilowatt per square metre delta kelvin
enumeration W/(m2.deltaK)
watt per square metre delta kelvin
Used by
Source

<xs:attribute name="uom" use="required" type="eml:HeatTransferCoefficientUom"/>
