Complex Type eml:HeatFlowRateMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

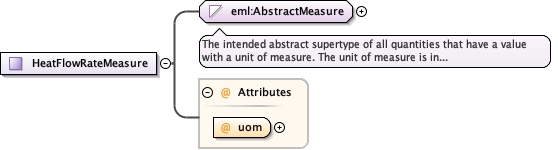

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_HeatFlowRateMeasure.tmp#HeatFlowRateMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:HeatFlowRateUom required
Source

<xs:complexType name="HeatFlowRateMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:HeatFlowRateUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:HeatFlowRateMeasure / @uom
Namespace No namespace
Type eml:HeatFlowRateUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1E6 Btu[IT]/h
million BTU per hour
enumeration Btu[IT]/h
BTU per hour
enumeration Btu[IT]/min
BTU per minute
enumeration Btu[IT]/s
BTU per second
enumeration cal[th]/h
calorie per hour
enumeration EJ/a
exajoule per julian-year
enumeration erg/a
erg per julian-year
enumeration GW
gigawatt
enumeration J/s
joule per second
enumeration kcal[th]/h
thousand calorie per hour
enumeration kW
kilowatt
enumeration lbf.ft/min
foot pound-force per minute
enumeration lbf.ft/s
foot pound-force per second
enumeration MJ/a
megajoule per julian-year
enumeration mW
milliwatt
enumeration MW
megawatt
enumeration nW
nanowatt
enumeration quad/a
quad per julian-year
enumeration TJ/a
terajoule per julian-year
enumeration TW
terawatt
enumeration ucal[th]/s
millionth of calorie per second
enumeration uW
microwatt
enumeration W
watt
Used by
Source

<xs:attribute name="uom" use="required" type="eml:HeatFlowRateUom"/>
