Complex Type eml:EnergyPerAreaMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

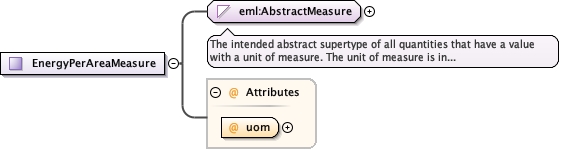

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_EnergyPerAreaMeasure.tmp#EnergyPerAreaMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:EnergyPerAreaUom required
Source

<xs:complexType name="EnergyPerAreaMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:EnergyPerAreaUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:EnergyPerAreaMeasure / @uom
Namespace No namespace
Type eml:EnergyPerAreaUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration erg/cm2
erg per square centimetre
enumeration J/cm2
joule per square centimetre
enumeration J/m2
joule per square metre
enumeration kgf.m/cm2
thousand gram-force metre per square centimetre
enumeration lbf.ft/in2
foot pound-force per square inch
enumeration mJ/cm2
millijoule per square centimetre
enumeration mJ/m2
millijoule per square metre
enumeration N/m
newton per metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:EnergyPerAreaUom"/>
