Complex Type eml:EnergyLengthPerTimeAreaTemperatureMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

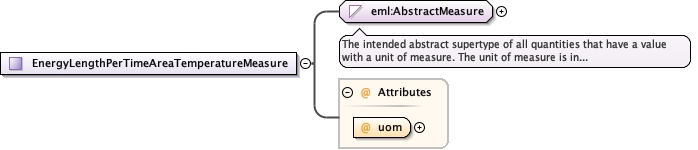

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_EnergyLengthPerTimeAreaTemperatureMeasure.tmp#EnergyLengthPerTimeAreaTemperatureMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
Source

<xs:complexType name="EnergyLengthPerTimeAreaTemperatureMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:EnergyLengthPerTimeAreaTemperatureUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:EnergyLengthPerTimeAreaTemperatureMeasure / @uom
Namespace No namespace
Type eml:EnergyLengthPerTimeAreaTemperatureUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration Btu[IT].in/(h.ft2.deltaF)
BTU per (hour square foot delta Fahrenheit per inch)
enumeration J.m/(s.m2.deltaK)
joule metre per second square metre delta kelvin
enumeration kJ.m/(h.m2.deltaK)
kilojoule metre per hour square metre delta kelvin
enumeration W/(m.deltaK)
watt per metre delta kelvin
Used by
Source

<xs:attribute name="uom" use="required" type="eml:EnergyLengthPerTimeAreaTemperatureUom"/>
