Complex Type eml:ElectricFieldStrengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

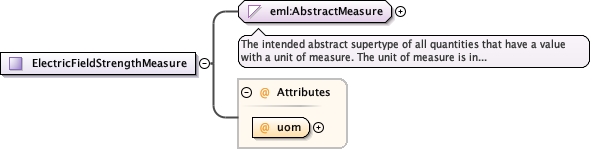

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ElectricFieldStrengthMeasure.tmp#ElectricFieldStrengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:ElectricFieldStrengthUom required
Source

<xs:complexType name="ElectricFieldStrengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:ElectricFieldStrengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:ElectricFieldStrengthMeasure / @uom
Namespace No namespace
Type eml:ElectricFieldStrengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration mV/ft
millivolt per foot
enumeration mV/m
millivolt per metre
enumeration uV/ft
microvolt per foot
enumeration uV/m
microvolt per metre
enumeration V/m
volt per metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:ElectricFieldStrengthUom"/>
