Complex Type eml:ElectricCurrentDensityMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

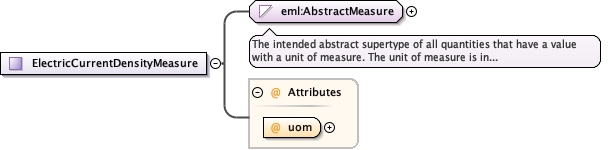

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ElectricCurrentDensityMeasure.tmp#ElectricCurrentDensityMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:ElectricCurrentDensityUom required
Source

<xs:complexType name="ElectricCurrentDensityMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:ElectricCurrentDensityUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:ElectricCurrentDensityMeasure / @uom
Namespace No namespace
Type eml:ElectricCurrentDensityUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration A/cm2
ampere per square centimetre
enumeration A/ft2
ampere per square foot
enumeration A/m2
ampere per square metre
enumeration A/mm2
ampere per square millimetre
enumeration mA/cm2
milliampere per square centimetre
enumeration mA/ft2
milliampere per square foot
enumeration uA/cm2
microampere per square centimetre
enumeration uA/in2
microampere per square inch
Used by
Source

<xs:attribute name="uom" use="required" type="eml:ElectricCurrentDensityUom"/>
