Complex Type eml:ElectricConductanceMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

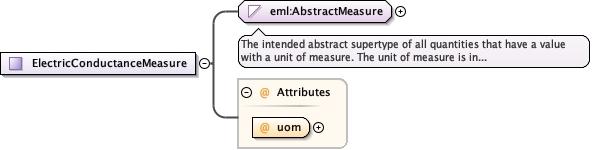

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ElectricConductanceMeasure.tmp#ElectricConductanceMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:ElectricConductanceUom required
Source

<xs:complexType name="ElectricConductanceMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:ElectricConductanceUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:ElectricConductanceMeasure / @uom
Namespace No namespace
Type eml:ElectricConductanceUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration cS
centisiemens
enumeration dS
decisiemens
enumeration ES
exasiemens
enumeration fS
femtosiemens
enumeration GS
gigasiemens
enumeration kS
kilosiemens
enumeration mS
millisiemens
enumeration MS
megasiemens
enumeration nS
nanosiemens
enumeration pS
picosiemens
enumeration S
siemens
enumeration TS
terasiemens
enumeration uS
microsiemens
Used by
Source

<xs:attribute name="uom" use="required" type="eml:ElectricConductanceUom"/>
