Complex Type eml:AreaPerVolumeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

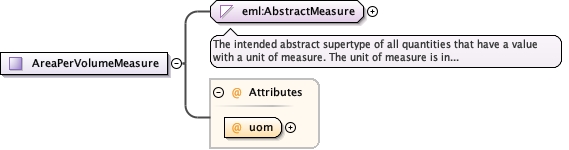

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaPerVolumeMeasure.tmp#AreaPerVolumeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:AreaPerVolumeUom required
Source

<xs:complexType name="AreaPerVolumeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AreaPerVolumeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AreaPerVolumeMeasure / @uom
Namespace No namespace
Type eml:AreaPerVolumeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 1/m
per metre
enumeration b/cm3
barn per cubic centimetre
enumeration cu
capture unit
enumeration ft2/in3
square foot per cubic inch
enumeration m2/cm3
square metre per cubic centimetre
enumeration m2/m3
square metre per cubic metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:AreaPerVolumeUom"/>
