Complex Type eml:AreaPerTimeMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

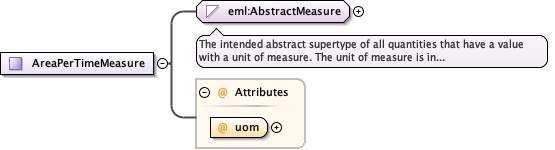

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaPerTimeMeasure.tmp#AreaPerTimeMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:AreaPerTimeUom required
Source

<xs:complexType name="AreaPerTimeMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AreaPerTimeUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AreaPerTimeMeasure / @uom
Namespace No namespace
Type eml:AreaPerTimeUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration cm2/s
square centimetre per second
enumeration ft2/h
square foot per hour
enumeration ft2/s
square foot per second
enumeration in2/s
square inch per second
enumeration m2/d
square metre per day
enumeration m2/h
square metre per hour
enumeration m2/s
square metre per second
enumeration mm2/s
square millimetre per second
Used by
Complex Type eml:AreaPerTimeMeasure
Source

<xs:attribute name="uom" use="required" type="eml:AreaPerTimeUom"/>
