Complex Type eml:AreaPerAreaMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

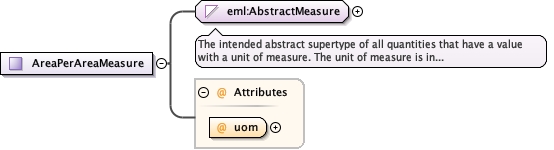

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaPerAreaMeasure.tmp#AreaPerAreaMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Used by
Attributes
QName Type Use
uom eml:AreaPerAreaUom required
Source

<xs:complexType name="AreaPerAreaMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AreaPerAreaUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AreaPerAreaMeasure / @uom
Namespace No namespace
Type eml:AreaPerAreaUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration %
percent
enumeration %[area]
percent [area basis]
enumeration cEuc
centieuclid
enumeration Euc
euclid
enumeration in2/ft2
square inch per square foot
enumeration in2/in2
square inch per square inch
enumeration m2/m2
square metre per square metre
enumeration mm2/mm2
square millimetre per square millimetre
Used by
Complex Type eml:AreaPerAreaMeasure
Source

<xs:attribute name="uom" use="required" type="eml:AreaPerAreaUom"/>
