Complex Type eml:AmountOfSubstancePerAmountOfSubstanceMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

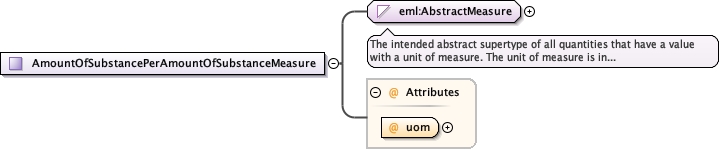

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AmountOfSubstancePerAmountOfSubstanceMeasure.tmp#AmountOfSubstancePerAmountOfSubstanceMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
Source

<xs:complexType name="AmountOfSubstancePerAmountOfSubstanceMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AmountOfSubstancePerAmountOfSubstanceUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AmountOfSubstancePerAmountOfSubstanceMeasure / @uom
Namespace No namespace
Type eml:AmountOfSubstancePerAmountOfSubstanceUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration %
percent
enumeration %[molar]
percent [molar basis]
enumeration Euc
euclid
enumeration mol/mol
mole per mole
enumeration nEuc
nanoeuclid
enumeration ppk
part per thousand
enumeration ppm
part per million
Used by
Source

<xs:attribute name="uom" use="required" type="eml:AmountOfSubstancePerAmountOfSubstanceUom"/>
