Element witsml:PassIndexedDepth / witsml:Pass
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

The pass number. Increase the pass number each time the tool direction changes twice.

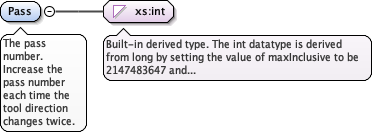

Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="Pass" type="xs:int" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The pass number. Increase the pass number each time the tool direction changes twice.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:PassIndexedDepth / witsml:Direction
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

0 = down (increasing depth)
1= up (decreasing depth)
Changes each time the logging tool direction changes.
When a log starts from the bottom, start with pass = 0, direction = 1.
When you get to the top of the interval and start down again, change the pass.

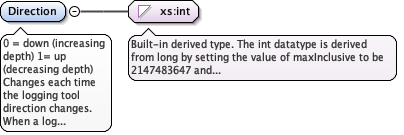

Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="Direction" type="xs:int" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>0 = down (increasing depth) 1= up (decreasing depth) Changes each time the logging tool direction changes. When a log starts from the bottom, start with pass = 0, direction = 1. When you get to the top of the interval and start down again, change the pass.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:PassIndexedDepth / witsml:Depth
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

The measured depth of the point.
Diagram
Diagram
Type xs:float
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="Depth" type="xs:float" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The measured depth of the point.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type witsml:PassIndexedDepth
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Qualifies depth based on pass, direction and depth

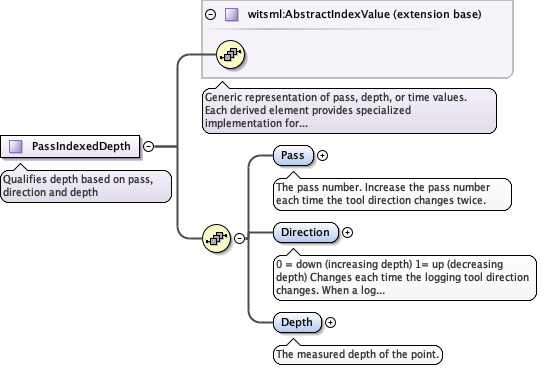

Diagram
DiagramLog_xsd_Complex_Type_witsml_AbstractIndexValue.tmp#AbstractIndexValueLog_xsd_Complex_Type_witsml_PassIndexedDepth.tmp#PassIndexedDepth_PassLog_xsd_Complex_Type_witsml_PassIndexedDepth.tmp#PassIndexedDepth_DirectionLog_xsd_Complex_Type_witsml_PassIndexedDepth.tmp#PassIndexedDepth_Depth
Type extension of witsml:AbstractIndexValue
Type hierarchy
Model
Children witsml:Depth, witsml:Direction, witsml:Pass
Source

<xs:complexType name="PassIndexedDepth">
  <xs:annotation>
    <xs:documentation>Qualifies depth based on pass, direction and depth</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="witsml:AbstractIndexValue">
      <xs:sequence>
        <xs:element name="Pass" type="xs:int" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The pass number. Increase the pass number each time the tool direction changes twice.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Direction" type="xs:int" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>0 = down (increasing depth) 1= up (decreasing depth) Changes each time the logging tool direction changes. When a log starts from the bottom, start with pass = 0, direction = 1. When you get to the top of the interval and start down again, change the pass.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Depth" type="xs:float" minOccurs="1" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The measured depth of the point.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
