Element diggs:AbstractRelativeReferenceSystem
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use diggs:LinearSpatialReferenceSystem for linear
referencing, or diggs:LocalCartesianCRS for 2D and 3D relative referencing. Head of
the relative spatial reference systems.

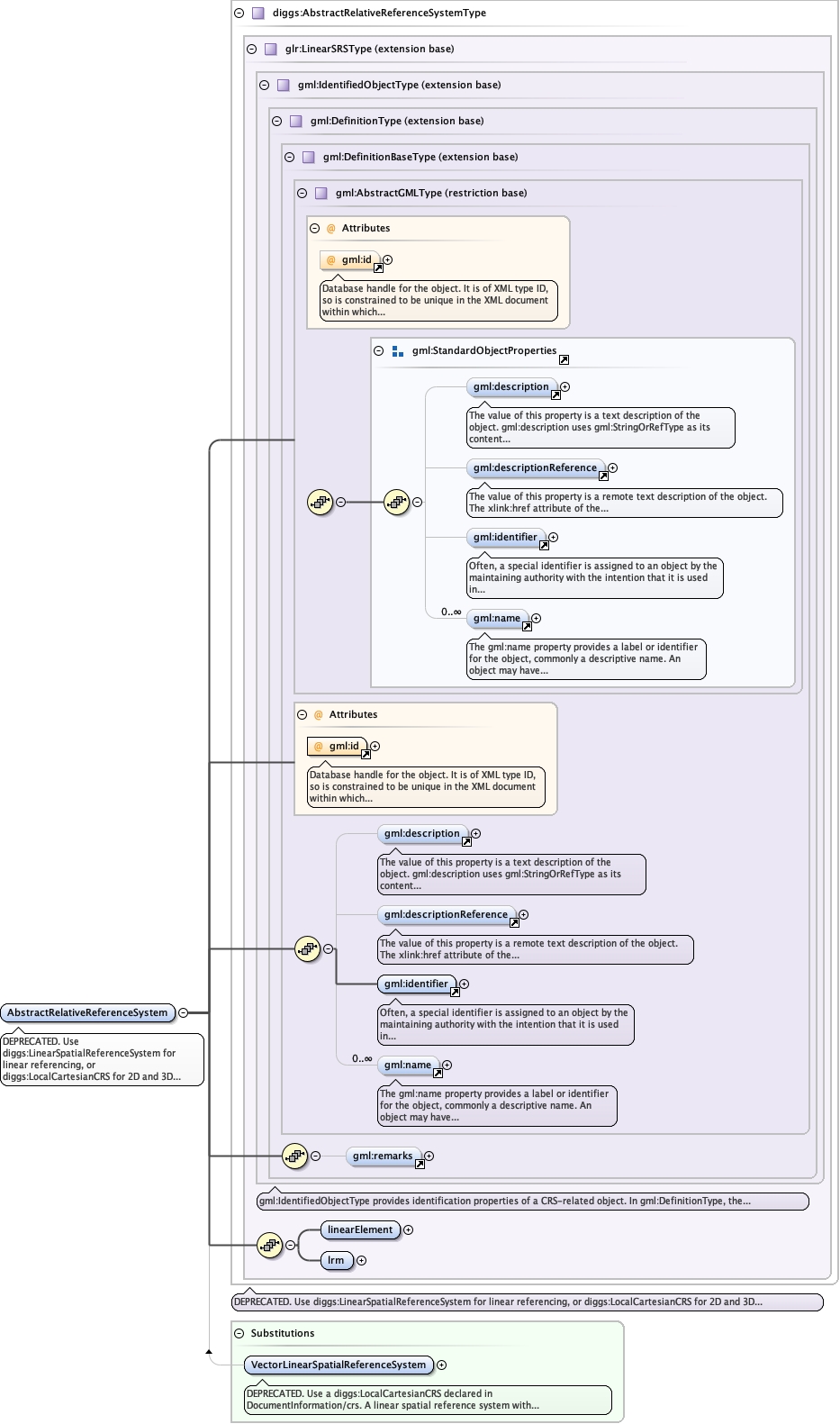

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypeglrProfile_diggs_xsd_Complex_Type_glr_LinearSRSType.tmp#LinearSRSType_linearElementglrProfile_diggs_xsd_Complex_Type_glr_LinearSRSType.tmp#LinearSRSType_lrmglrProfile_diggs_xsd_Complex_Type_glr_LinearSRSType.tmp#LinearSRSTypeLinearReferencing_xsd_Complex_Type_diggs_AbstractRelativeReferenceSystemType.tmp#AbstractRelativeReferenceSystemTypeLinearReferencing_xsd_Element_diggs_VectorLinearSpatialReferenceSystem.tmp#VectorLinearSpatialReferenceSystem
Type diggs:AbstractRelativeReferenceSystemType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children glr:linearElement, glr:lrm, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks
Instance

<diggs:AbstractRelativeReferenceSystem gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:glr="http://www.opengis.net/gml/3.3/lr">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <glr:linearElement xlink:href="" nilReason="">{1,1}</glr:linearElement>
  <glr:lrm xlink:href="" nilReason="">{1,1}</glr:lrm>
</diggs:AbstractRelativeReferenceSystem>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractRelativeReferenceSystem" type="diggs:AbstractRelativeReferenceSystemType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" note="diggs:LinearSpatialReferenceSystem for linear referencing, or diggs:LocalCartesianCRS for 2D and 3D relative referencing"/>
    </appinfo>
    <documentation>DEPRECATED. Use diggs:LinearSpatialReferenceSystem for linear referencing, or diggs:LocalCartesianCRS for 2D and 3D relative referencing. Head of the relative spatial reference systems.</documentation>
  </annotation>
</element>
