Element diggs:PropertyParameters
Namespace http://diggsml.org/schema-dev
Annotations

An object that contains the properties of a measurement
result.

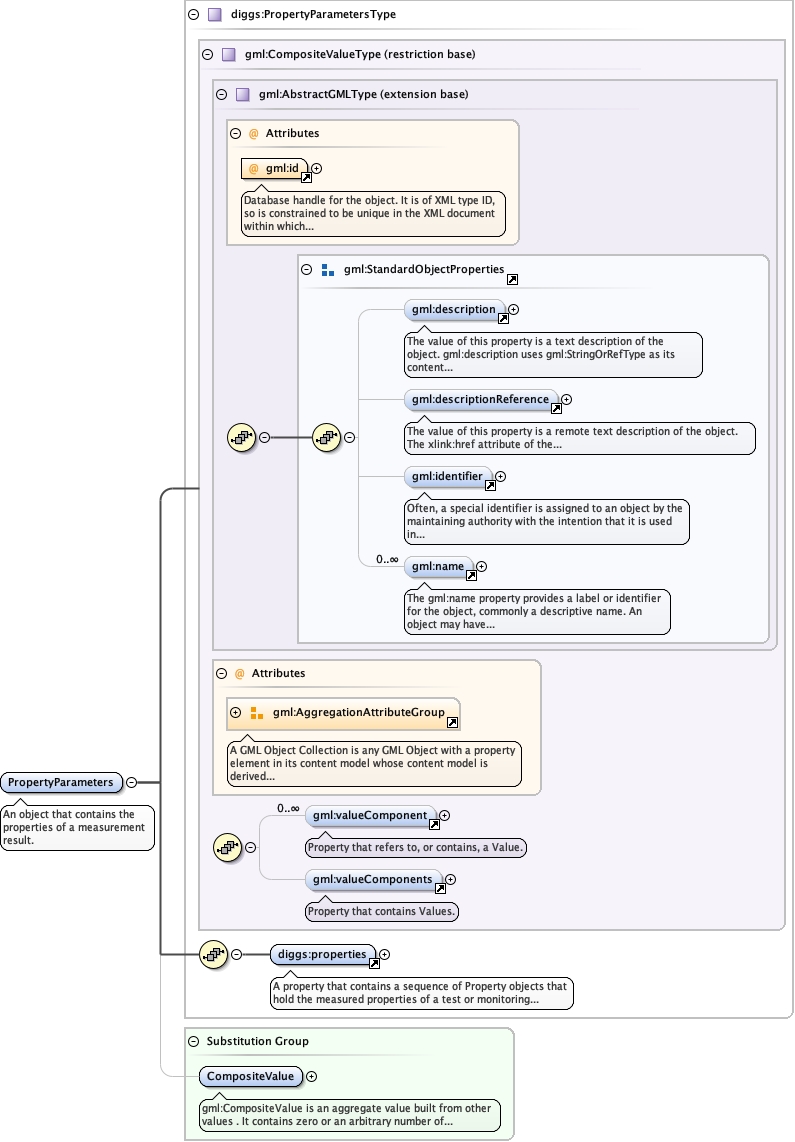

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_valueComponent.tmp#valueComponentgml3_2Profile_diggs_xsd_Element_gml_valueComponents.tmp#valueComponentsgml3_2Profile_diggs_xsd_Complex_Type_gml_CompositeValueType.tmp#CompositeValueTypeKernel_xsd_Element_diggs_properties.tmp#propertiesKernel_xsd_Complex_Type_diggs_PropertyParametersType.tmp#PropertyParametersTypegml3_2Profile_diggs_xsd_Element_gml_CompositeValue.tmp#CompositeValue
Type diggs:PropertyParametersType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:properties
Instance

<diggs:PropertyParameters aggregationType="" gml:id="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:properties owns="false">{1,1}</diggs:properties>
</diggs:PropertyParameters>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="PropertyParameters" type="diggs:PropertyParametersType" substitutionGroup="gml:CompositeValue">
  <annotation>
    <documentation>An object that contains the properties of a measurement result.</documentation>
  </annotation>
</element>
